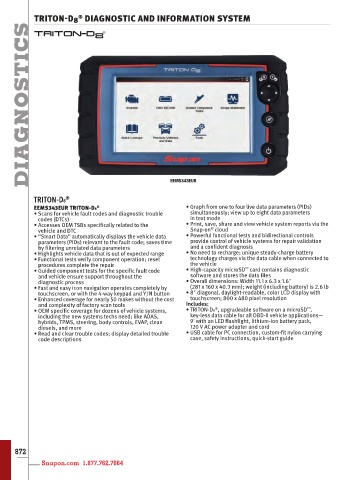

TRITON-D 8 ® DIAGNOSTIC AND INFORMATION SYSTEM
DIAGNOSTICS

EEMS343EUR

®
TRITON-D8
® • Graph from one to four live data parameters (PIDs)
EEMS343EUR TRITON-D8
• Scans for vehicle fault codes and diagnostic trouble simultaneously; view up to eight data parameters
codes (DTCs) in text mode
• Accesses OEM TSBs specifically related to the • Print, save, share and view vehicle system reports via the
®
vehicle and DTC Snap-on cloud
• “Smart Data” automatically displays the vehicle data • Powerful functional tests and bidirectional controls
parameters (PIDs) relevant to the fault code; saves time provide control of vehicle systems for repair validation
by filtering unrelated data parameters and a confident diagnosis
• Highlights vehicle data that is out of expected range • No need to recharge; unique steady-charge battery
• Functional tests verify component operation; reset technology charges via the data cable when connected to
procedures complete the repair the vehicle
™
• Guided component tests for the specific fault code • High-capacity microSD card contains diagnostic
and vehicle ensure support throughout the software and stores the data files
diagnostic process • Overall dimensions: Width 11.1 x 6.3 x 1.6ʺ
• Fast and easy icon navigation operates completely by (281 x 160 x 40.3 mm); weight (including battery) is 2.6 lb
touchscreen, or with the 4-way keypad and Y/N button • 8ʺ diagonal, daylight-readable, color LCD display with
• Enhanced coverage for nearly 50 makes without the cost touchscreen; 800 x 480 pixel resolution
and complexity of factory scan tools Includes:
™
®
• OEM specific coverage for dozens of vehicle systems, • TRITON-D8 , upgradeable software on a microSD ,
including the new systems techs need; like ADAS, key-less data cable for all OBD-II vehicle applications—
hybrids, TPMS, steering, body controls, EVAP, clean 9ʹ with an LED flashlight, lithium-ion battery pack,
diesels, and more 120 V AC power adapter and cord
• Read and clear trouble codes; display detailed trouble • USB cable for PC connection, custom-fit nylon carrying
code descriptions case, safety instructions, quick-start guide
