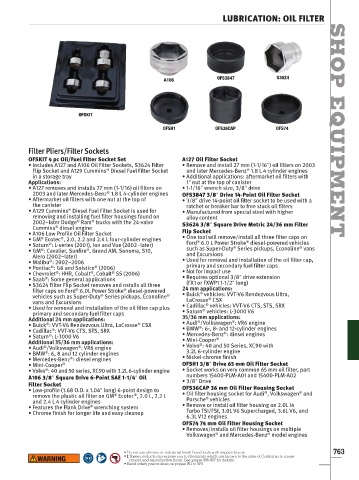

Page 765 - 实耐宝完整US版1500

LUBRICATION: OIL FILTER

OFS3847 S3624 SHOP
A106

OFSKIT
OFSH1 OFS36CAP OFS74

Filter Pliers/Filter Sockets
OFSKIT 4 pc Oil/Fuel Filter Socket Set A127 Oil Filter Socket
• Includes A127 and A106 Oil Filter Sockets, S3624 Filter • Remove and install 27 mm (1-1/16ʺ) oil filters on 2003 EQUIPMENT
®
®
Flip Socket and A129 Cummins Diesel Fuel Filter Socket and later Mercedes-Benz 1.8 L 4 cylinder engines
in a storage tray • Additional applications: aftermarket oil filters with
Applications: 1ʺ nut at the top of canister
• A127 removes and installs 27 mm (1-1/16) oil filters on • 1-1/16ʺ wrench size, 3/8ʺ drive
2003 and later Mercedes-Benz 1.8 L 4-cylinder engines OFS3847 3/8ʺ Drive 14-Point Oil Filter Socket
®
• Aftermarket oil filters with one nut at the top of • 3/8ʺ drive 14-point oil filter socket to be used with a
the canister ratchet or breaker bar to free stuck oil filters
®
• A129 Cummins Diesel Fuel Filter Socket is used for • Manufactured from special steel with higher
removing and installing fuel filter housings found on alloy content
®
®
2002–later Dodge Ram trucks with the 24-valve S3624 3/8ʺ Square Drive Metric 24/36 mm Filter
Cummins diesel engine
®
• A106 Low Profile Oil Filter Socket Flip Socket
®
• GM Ecotec , 2.0, 2.2 and 2.4 L four-cylinder engines • One tool will remove/install all three filter caps on
®
®
®
®
• Saturn : L-series (2001), Ion and Vue (2002–later) Ford 6.0 L Power Stroke diesel-powered vehicles
®
®
• GM : Cavalier, Sunfire , Grand AM, Sonoma, S10, such as Super-Duty Series pickups, Econoline vans
®
®
Alero (2002–later) and Excursions
®
• Malibu : 2002–2006 • Used for removal and installation of the oil filter cap,
®
• Pontiac : G6 and Solstice (2006) primary and secondary fuel filter caps
®
®
®
®
• Chevrolet : HHR, Cobalt , Cobalt SS (2006) • Not for impact use
®
• Saab : Some general applications • Requires optional 3/8ʺ drive extension
• S3624 Filter Flip Socket removes and nstalls all three (FX1 or FXWP1 1-1/2ʺ long)
®
®
filter caps on Ford 6.0L Power Stroke diesel-powered 24 mm applications:
®
®
vehicles such as Super-Duty Series pickups, Econoline • Buick vehicles: VVT-V6 Rendezvous Ultra,
®
®
vans and Excursions LaCrosse CSX
®
• Used for removal and installation of the oil filter cap plus • Cadillac vehicles: VVT-V6 CTS, STS, SRX
®
primary and secondary fuel filter caps • Saturn vehicles: L-3000 V6
Additional 24 mm applications: 35/36 mm applications:
®
®
®
• Buick : VVT-V6 Rendezvous Ultra, LaCrosse CSX • Audi /Volkswagen : VR6 engine
®
®
• Cadillac : VVT-V6 CTS, STS, SRX • BMW : 6-, 8- and 12-cylinder engines
®
®
®
• Saturn : L-3000 V6 • Mercedes-Benz : diesel engines
®
Additional 35/36 mm applications: • Mini-Cooper
®
®
®
• Audi /Volkswagen : VR6 engine • Volvo : 40 and 50 Series, XC90 with
®
• BMW : 6, 8 and 12 cylinder engines 3.2L 6-cylinder engine
• Mercedes-Benz : diesel engines • Nickel-chrome finish
®
• Mini-Cooper ® OFSH1 3/8ʺ Drive 65 mm Oil Filter Socket
®
• Volvo : 40 and 50 series, XC90 with 3.2L 6-cylinder engine • Socket works on very common 65 mm oil filter, part
numbers 15400-PLM-A01 and 15400-PLM-A02
A106 3/8ʺ Square Drive 6-Point SAE 1-1/4ʺ Oil • 3/8ʺ Drive
Filter Socket
• Low-profile (1.68 O.D. x 1.04ʺ long) 6-point design to OFS36CAP 36 mm Oil Filter Housing Socket ®
®
®
remove the plastic oil filter on GM Ecotec , 2.0 L, 2.2 L • Oil filter housing socket for Audi , Volkswagen and
®
®
and 2.4 L 4 cylinder engines Porsche vehicles
®
• Features the Flank Drive wrenching system • Remove or install oil filter housing on 2.0L I4
• Chrome finish for longer life and easy cleanup Turbo TSI/FSI, 3.0L V6 Supercharged, 3.6L V6, and
6.3L V12 engines
OFS74 74 mm Oil Filter Housing Socket
• Removes/installs oil filter housings on multiple
®
Volkswagen and Mercedes-Benz model engines
®
• Do not use chrome or industrial finish hand tools with impact drivers 763
• ‡ These products can expose you to chemicals which are known to the state of California to cause
cancer and reproductive harm. See pages 906-907 for details.
• Read safety precautions on pages W1 to W4
