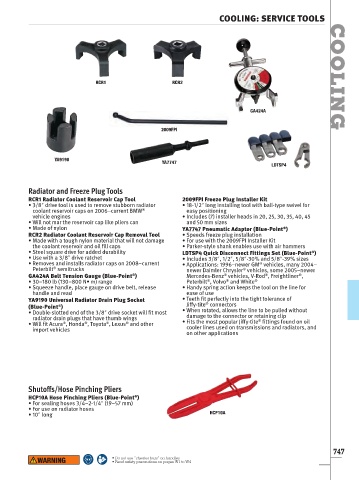

Page 749 - 实耐宝完整US版1500

COOLING: SERVICE TOOLS

RCR1 RCR2 COOLING

GA424A

2009FPI

YA9190
YA7747
LDTSP4

Radiator and Freeze Plug Tools
RCR1 Radiator Coolant Reservoir Cap Tool 2009FPI Freeze Plug Installer Kit
• 3/8ʺ drive tool is used to remove stubborn radiator • 18-1/2ʺ long installing tool with ball-type swivel for
®
coolant reservoir caps on 2006–current BMW easy positioning
vehicle engines • Includes (7) installer heads in 20, 25, 30, 35, 40, 45
• Will not mar the reservoir cap like pliers can and 50 mm sizes
• Made of nylon YA7747 Pneumatic Adaptor (Blue-Point )
®
RCR2 Radiator Coolant Reservoir Cap Removal Tool • Speeds freeze plug installation
• Made with a tough nylon material that will not damage • For use with the 2009FPI Installer Kit
the coolant reservoir and oil fill caps • Parker-style shank enables use with air hammers
• Steel square drive for added durability LDTSP4 Quick Disconnect Fittings Set (Blue-Point )
®
• Use with a 3/8ʺ drive ratchet • Includes 3/8ʺ, 1/2ʺ, 5/8ʺ-30% and 5/8ʺ-39% sizes
• Removes and installs radiator caps on 2008–current • Applications: 1996–newer GM vehicles, many 2004–
®
®
Peterbilt semitrucks newer Daimler Chrysler vehicles, some 2005–newer
®
®
®
®
®
GA424A Belt Tension Gauge (Blue-Point ) Mercedes-Benz vehicles, V-Rod , Freightliner ,
®
• 30–180 lb (130–800 N• m) range Peterbilt , Volvo and White ®
®
• Squeeze handle, place gauge on drive belt, release • Handy spring action keeps the tool on the line for
handle and read ease of use
YA9190 Universal Radiator Drain Plug Socket • Teeth fit perfectly into the tight tolerance of
®
(Blue-Point ) Jiffy-tite connectors
®
• Double-slotted end of the 3/8ʺ drive socket will fit most • When rotated, allows the line to be pulled without
radiator drain plugs that have thumb wings damage to the connector or retaining clip
®
®
®
®
• Will fit Acura , Honda , Toyota , Lexus and other • Fits the most popular Jiffy-tite fittings found on oil
®
import vehicles cooler lines used on transmissions and radiators, and
on other applications
Shutoffs/Hose Pinching Pliers
HCP10A Hose Pinching Pliers (Blue-Point )
®
• For sealing hoses 3/4–2-1/4ʺ (19–57 mm)
• For use on radiator hoses
• 10ʺ long HCP10A
747
• Do not use “cheater bars” on handles
• Read safety precautions on pages W1 to W4

739-750 ST_Cooling_SO1500_19-0154.indd 747 12/10/19 4:51 PM
