Page 69 - 实耐宝完整US版1500
P. 69

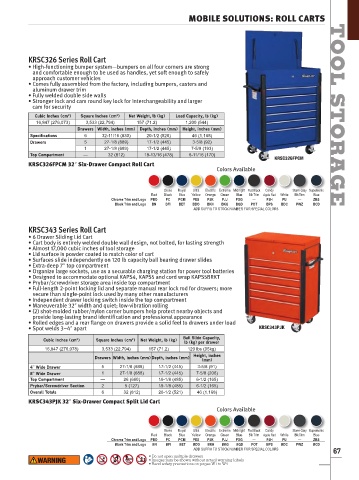

MOBILE SOLUTIONS: ROLL CARTS
KRSC326 Series Roll Cart TOOL
• High-functioning bumper system—bumpers on all four corners are strong
and comfortable enough to be used as handles, yet soft enough to safely
approach customer vehicles
• Comes fully assembled from the factory, including bumpers, casters and
TOOL
aluminum drawer trim
• Fully welded double side walls
• Stronger lock and cam round key lock for interchangeability and larger
cam for security
2
3
Cubic Inches (cm ) Square Inches (cm ) Net Weight, lb (kg) Load Capacity, lb (kg)
16,847 (276,073) 3,533 (22,794) 157 (71.2) 1,200 (544)
Drawers Width, inches (mm) Depth, inches (mm) Height, inches (mm)
Specifications 6 32-11/16 (830) 20-1/2 (520) 46 (1,168)
Drawers 5 27-1/8 (689) 17-1/2 (445) 3-5/8 (92)
1 27-1/8 (689) 17-1/2 (445) 7-5/8 (193) STORAGE
Top Compartment — 32 (812) 18-13/16 (478) 6-11/16 (170)
KRSC326FPCM
KRSC326FPCM 32ʺ Six-Drawer Compact Roll Cart
Colors Available
Gloss Royal Ultra Electric Extreme Midnight Flat Black Candy Storm Gray Supersonic
Red Black Blue Yellow Orange Green Blue Blk Trim Apple Red White Blk Trim Blue
Chrome Trim and Logo PBO PC PCM PES PJK PJJ PDG — PJH PU — ZBS
Black Trim and Logo BN BFI BET BDO BKH BKG BQD POT BPS BDC PWZ BCD
ADD SUFFIX TO STOCK NUMBER FOR SPECIAL COLORS
STORAGE
KRSC343 Series Roll Cart
• 6 Drawer Sliding Lid Cart
• Cart body is entirely welded double wall design, not bolted, for lasting strength
• Almost 17,000 cubic inches of tool storage
• Lid surface is powder coated to match color of cart
• Surfaces slide independently on 120 lb capacity ball bearing drawer slides
• Extra-deep 7ʺ top compartment
• Organize large sockets, use as a securable charging station for power tool batteries
• Designed to accommodate optional KAPS4, KAPS5 and cord wrap KAPS5BRKT
• Prybar/screwdriver storage area inside top compartment
• Full-length 2-point locking lid and separate manual rear lock rod for drawers; more
secure than single-point lock used by many other manufacturers
• Independent drawer locking switch inside the top compartment
• Maneuverable 32ʺ width and quiet; low-vibration rolling
• (2) shot-molded rubber/nylon corner bumpers help protect nearby objects and
provide long-lasting brand identification and professional appearance
• Rolled edges and a rear flange on drawers provide a solid feel to drawers under load
• Spot welds 3–4ʺ apart KRSC343PJK
Ball Slide Capacity,
2
Cubic Inches (cm ) Square Inches (cm ) Net Weight, lb (kg)
3
lb (kg) per drawer
16,847 (276,078) 3,533 (22,794) 157 (71.2) 120 lbs (95kg)
Height, inches
Drawers Width, inches (mm) Depth, inches (mm)
(mm)
4" Wide Drawer 5 27-1/8 (688) 17-1/2 (445) 3-5/8 (91)
8" Wide Drawer 1 27-1/8 (688) 17-1/2 (445) 7-5/8 (206)
Top Compartment — 26 (660) 19-1/8 (485) 6-1/2 (165)
Prybar/Screwdriver Section 2 5 (127) 19-1/8 (485) 6-1/2 (165)
Overall Totals 6 32 (812) 20-1/2 (521) 46 (1,168)
KRSC343PJK 32ʺ Six-Drawer Compact Split Lid Cart
Colors Available
Gloss Royal Ultra Electric Extreme Midnight Flat Black Candy Storm Gray Supersonic
Red Black Blue Yellow Orange Green Blue Blk Trim Apple Red White Blk Trim Blue
Chrome Trim and Logo PBO PC PCM PES PJK PJJ PDG — PJH PU — ZBS
Black Trim and Logo BN BFI BET BDO BKH BKG BQD POT BPS BDC PWZ BCD
ADD SUFFIX TO STOCK NUMBER FOR SPECIAL COLORS
67 67
• Do not open multiple drawers
• Images may be shown without actual warning labels
• Read safety precautions on pages W1 to W4
