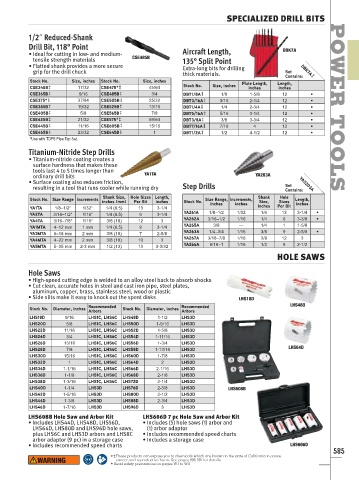

Page 587 - 实耐宝完整US版1500

SPECIALIZED DRILL BITS

1/2ʺ Reduced-Shank
Drill Bit, 118° Point DBK7A
• Ideal for cutting in low- and medium- Aircraft Length,
tensile strength materials CSE485B 135° Split Point
• Flatted shank provides a more secure Extra-long bits for drilling POWER
grip for the drill chuck Set DBK7A ‡
thick materials. Contains:
Stock No. Size, inches Stock No. Size, inches Flute Length, Length,
CSE345B ‡ 17/32 CSE475* ‡ 45/64 Stock No. Size, inches inches inches
CSE365B ‡ 9/16 CSE485B ‡ 3/4 DBT1/8A ‡ 1/8 1-5/8 12 •
CSE375* ‡ 37/64 CSE505B ‡ 25/32 DBT3/16A ‡ 3/16 2-1/4 12 •
CSE385B ‡ 19/32 CSE525B ‡ 13/16 DBT1/4A ‡ 1/4 2-3/4 12 •
CSE405B ‡ 5/8 CSE565B ‡ 7/8 DBT5/16A ‡ 5/16 3-1/4 12 •
CSE425B ‡ 21/32 CSE575* ‡ 59/64 DBT3/8A ‡ 3/8 3-3/4 12 •
CSE445B ‡ 11/16 CSE605B ‡ 15/16 DBT7/16A ‡ 7/16 4 12 •
CSE465B ‡ 23/32 CSE645B ‡ 1 DBT1/2A ‡ 1/2 4-1/2 12 •
*Use with TDP6 Pipe Tap Set.

Titanium-Nitride Step Drills TOOLS
• Titanium-nitride coating creates a
surface hardness that makes these
tools last 4 to 5 times longer than
ordinary drill bits YA1TA YA263A
• Surface coating also reduces friction, YAS203A
resulting in a tool that runs cooler while running dry Step Drills Set
Contains:
Shank Size, Hole Sizes Length, Shank Hole
Stock No. Size Range Increments Size Range, Increments, Length,
inches (mm) Per Bit inches Stock No. Size, Sizes
inches inches inches
YA1TA 1/8–1/2ʺ 1/32ʺ 1/4 (6.5) 13 3-1/4 inches Per Bit
YA2TA 3/16–1/2ʺ 1/16ʺ 1/4 (6.5) 6 3-1/4 YA261A 1/8–1/2 1/32 1/4 13 3-1/4 •
YA4TA 3/16–7/8ʺ 1/16ʺ 3/8 (10) 12 3 YA262A 3/16–1/2 1/16 1/4 6 3-3/8 •
YA1MTA 4–12 mm 1 mm 1/4 (6.5) 9 3-1/4 YA265A 3/8 — 1/4 1 1-5/8
YA3MTA 6–18 mm 2 mm 3/8 (10) 7 2-5/8 YA263A 1/4–3/4 1/16 3/8 9 2-5/8 •
YA4MTA 4–22 mm 2 mm 3/8 (10) 10 3 YA267A 3/16–7/8 1/16 3/8 12 3
YA5MTA 5–35 mm 2-3 mm 1/2 (13) 13 3-3/32 YA266A 9/16–1 1/16 1/2 8 2-1/2
HOLE SAWS

Hole Saws
• High-speed cutting edge is welded to an alloy steel back to absorb shocks
• Cut clean, accurate holes in steel and cast iron pipe, steel plates,
aluminum, copper, brass, stainless steel, wood or plastic
• Side slits make it easy to knock out the spent disks LHS18D
Recommended Recommended LHS48D
Stock No. Diameter, inches Stock No. Diameter, inches
Arbors Arbors
LHS18D 9/16 LHS1C, LHS6C LHS48D 1-1/2 LHS3D
LHS20D 5/8 LHS1C, LHS6C LHS50D 1-9/16 LHS3D
LHS22D 11/16 LHS1C, LHS6C LHS52D 1-5/8 LHS3D
LHS24D 3/4 LHS1C, LHS6C LHS54D 1-11/16 LHS3D
LHS26D 13/16 LHS1C, LHS6C LHS56D 1-3/4 LHS3D
LHS28D 7/8 LHS1C, LHS6C LHS58D 1-13/16 LHS3D LHS64D
LHS30D 15/16 LHS1C, LHS6C LHS60D 1-7/8 LHS3D
LHS32D 1 LHS1C, LHS6C LHS64D 2 LHS3D
LHS34D 1-1/16 LHS1C, LHS6C LHS66D 2-1/16 LHS3D
LHS36D 1-1/8 LHS1C, LHS6C LHS68D 2-1/8 LHS3D
LHS38D 1-3/16 LHS1C, LHS6C LHS72D 2-1/4 LHS3D
LHS40D 1-1/4 LHS3D LHS76D 2-3/8 LHS3D LHS608B
LHS42D 1-5/16 LHS3D LHS80D 2-1/2 LHS3D
LHS44D 1-3/8 LHS3D LHS88D 2-3/4 LHS3D
LHS46D 1-7/16 LHS3D LHS96D 3 LHS3D
LHS608B Hole Saw and Arbor Kit LHS606D 7 pc Hole Saw and Arbor Kit
• Includes LHS44D, LHS48D, LHS56D, • Includes (5) hole saws (1) arbor and
LHS64D, LHS80D and LHS96D hole saws, (1) arbor adaptor
plus LHS6C and LHS3D arbors and LHS8C • Includes recommended speed charts
arbor adaptor (9 pc) in a storage case • Includes a storage case
• Includes recommended speed charts LHS606D
585
• ‡ These products can expose you to chemicals which are known to the state of California to cause
cancer and reproductive harm. See pages 906-907 for details.
• Read safety precautions on pages W1 to W4
