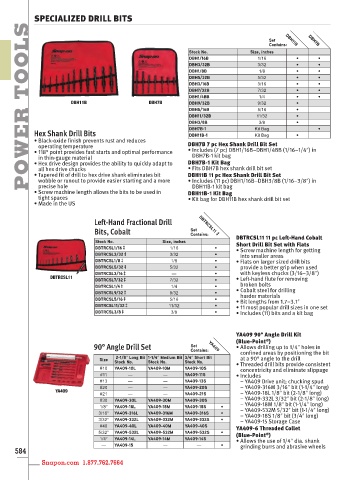

SPECIALIZED DRILL BITS
TOOLS Stock No. Size, inches DBH11B DBH7B • • • •

Set
Contains:

1/16
DBH1/16B
•
3/32
DBH3/32B
•
1/8
DBH1/8B
•
5/32
DBH5/32B
•
3/16
7/32
DBH7/32B
1/4
DBH1/4BB
DBH11B DBH7B DBH3/16B 11/32 • • • • • • • • • •
DBH9/32B
9/32
POWER Hex Shank Drill Bits DBH7B 7 pc Hex Shank Drill Bit Set • •
DBH5/16B
5/16
DBH11/32B
3/8
DBH3/8B
Kit Bag
DBH7B-1
Kit Bag
DBH11B-1
• Black-oxide finish prevents rust and reduces
operating temperature
• Includes (7 pc) DBH1/16B–DBH1/4BB (1/16–1/4ʺ) in
• 118° point provides fast starts and optimal performance
DBH7B-1 kit bag
in thin-gauge material
DBH7B-1 Kit Bag
• Hex drive design provides the ability to quickly adapt to
• Fits DBH7B hex shank drill bit set
all hex drive chucks
• Tapered fit of drill to hex drive shank eliminates bit
wobble or runout to provide easier starting and a more
• Includes (11 pc) DBH1/16B–DBH3/8B (1/16–3/8ʺ) in
DBH11B-1 kit bag
precise hole
• Screw machine length allows the bits to be used in DBH11B 11 pc Hex Shank Drill Bit Set
DBH11B-1 Kit Bag
tight spaces • Kit bag for DBH11B hex shank drill bit set
• Made in the US
Left-Hand Fractional Drill DBTRCSL11 ‡
Bits, Cobalt Set
Contains:
DBTRCSL11 11 pc Left-Hand Cobalt
Stock No. Size, inches Short Drill Bit Set with Flats
DBTRCSL1/16 ‡ 1/16 • • Screw machine length for getting
DBTRCSL3/32 ‡ 3/32 • into smaller areas
DBTRCSL1/8 ‡ 1/8 • • Flats on larger sized drill bits
DBTRCSL5/32 ‡ 5/32 • provide a better grip when used
DBTRCSL3/16 ‡ — • with keyless chucks (3/16–3/8ʺ)
DBTRCSL11
DBTRCSL7/32 ‡ 7/32 • • Left-hand flute for removing
DBTRCSL1/4 ‡ 1/4 • broken bolts
DBTRCSL9/32 ‡ 9/32 • • Cobalt steel for drilling
harder materials
DBTRCSL5/16 ‡ 5/16 • • Bit lengths from 1.7–3.1ʺ
DBTRCSL11/32 ‡ 11/32 • • 11 most popular drill sizes in one set
DBTRCSL3/8 ‡ 3/8 • • Includes (11) bits and a kit bag
YA409 90° Angle Drill Kit
(Blue-Point )
®
90° Angle Drill Set Set YA409 • Allows drilling up to 1/4ʺ holes in
Contains:
confined areas by positioning the bit
2-1/8ʺ Long Bit 1-1/4ʺ Medium Bit 3/4ʺ Short Bit
Size at a 90° angle to the drill
Stock No. Stock No. Stock No.
#10 YA409-10L YA409-10M YA409-10S • Threaded drill bits provide consistent
concentricity and eliminate slippage
#11 — — YA409-11S • Includes
#13 — — YA409-13S – YA409 Drive unit; chucking spud
#20 — — YA409-20S – YA409-316M 3/16ʺ bit (1-1/4ʺ long)
YA409
#21 — — YA409-21S – YA409-18L 1/8ʺ bit (2-1/8ʺ long)
#30 YA409-30L YA409-30M YA409-30S – YA409-332L 3/32ʺ bit (2-1/8ʺ long)
1/8ʺ YA409-18L YA409-18M YA409-18S • – YA409-18M 1/8ʺ bit (1-1/4ʺ long)
– YA409-532M 5/32ʺ bit (1-1/4ʺ long)
3/16ʺ YA409-316L YA409-316M YA409-316S •
– YA409-18S 1/8ʺ bit (3/4ʺ long)
3/32ʺ YA409-332L YA409-332M YA409-332S • – YA409-15 Storage Case
#40 YA409-40L YA409-40M YA409-40S YA409-6 Threaded Collet
5/32ʺ YA409-532L YA409-532M YA409-532S •
®
(Blue-Point )
1/4ʺ YA409-14L YA409-14M YA409-14S • Allows the use of 1/4ʺ dia. shank
— YA409-15 — — • grinding burrs and abrasive wheels
