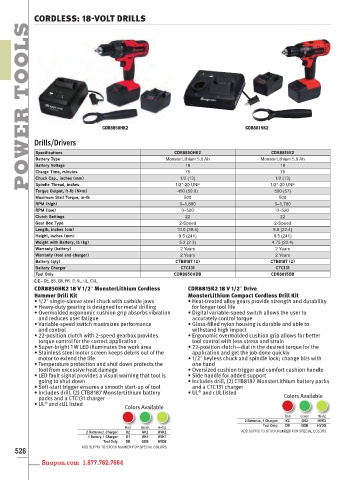

Page 528 - 实耐宝完整US版1500

CORDLESS: 18-VOLT DRILLS
TOOLS

POWER Drills/Drivers CDR8850HK2 MonsterLithium 5.0 Ah CDR8815K2 CDR8815K2

CDR8850HK2
Specifications
MonsterLithium 5.0 Ah
Battery Type
18
18
Battery Voltage
75
75
Charge Time, minutes
1/2 (13)
1/2 (13)
Chuck Cap., inches (mm)
Spindle Thread, inches
500 (57)
450 (50.9)
Torque Output, ft-lb (N•m) 1/2ʺ-20 UNF 1/2ʺ-20 UNF
Maximum Stall Torque, in-lb 500 500
RPM (high) 0–1,800 0–1,780
RPM (low) 0–500 0–520
Clutch Settings 22 22
Gear Box Type 2-Speed 2-Speed
Length, inches (cm) 10.0 (39.4) 8.8 (22.4)
Height, inches (mm) 9.5 (241) 9.5 (241)
Weight with Battery, lb (kg) 5.2 (2.3) 4.75 (22.4)
Warranty (battery) 2 Years 2 Years
Warranty (tool and charger) 2 Years 2 Years
Battery (qty) CTB8187 (2) CTB8187 (2)
Battery Charger CTC131 CTC131
Tool Only CDR8850HDB CDR8815DB
– DE, ES, GB, FR, IT, NL, UL, CUL
CDR8850HK2 18 V 1/2ʺ MonsterLithium Cordless CDR8815K2 18 V 1/2ʺ Drive
Hammer Drill Kit MonsterLithium Compact Cordless Drill Kit
• 1/2ʺ single-sleeve steel chuck with carbide jaws • Heat-treated alloy gears provide strength and durability
• Heavy-duty gearing is designed for metal drilling for longer tool life
• Overmolded ergonomic cushion grip absorbs vibration • Digital variable-speed switch allows the user to
and reduces user fatigue accurately control torque
• Variable-speed switch maximizes performance • Glass-filled nylon housing is durable and able to
and control withstand high impact
• 22-position clutch with 2-speed gearbox provides • Ergonomic overmolded cushion grip allows for better
torque control for the correct application tool control with less stress and strain
• Super-bright 1 W LED illuminates the work area • 22-position clutch—dial in the desired torque for the
• Stainless steel motor screen keeps debris out of the application and get the job done quickly
motor to extend the life • 1/2ʺ keyless chuck and spindle lock; change bits with
• Temperature protection and shut down protects the one hand
tool from excessive heat damage • Oversized cushion trigger and comfort cushion handle
• LED fault signal provides a visual warning that tool is • Side handle for added support
going to shut down • Includes drill, (2) CTB8187 MonsterLithium battery packs
• Soft-start trigger ensures a smooth start-up of tool and a CTC131 charger
• Includes drill, (2) CTB8187 MonsterLithium battery • UL and cUL listed
®
packs and a CTC131 charger Colors Available
®
• UL and cUL listed
Colors Available
Red Green Hi-Viz
2 Batteries, 1 Charger: K2 GK2 HVK2
Tool Only: DB GDB HVDB
Red Green Hi-Viz
2 Batteries,1 Charger: K2 GK2 HVK2 ADD SUFFIX TO STOCK NUMBER FOR SPECIAL COLORS
1 Battery, 1 Charger: K1 GK1 HVK1
Tool Only: DB GDB HVDB
ADD SUFFIX TO STOCK NUMBER FOR SPECIAL COLORS
526
Snapon.com 1.877.762.7664
