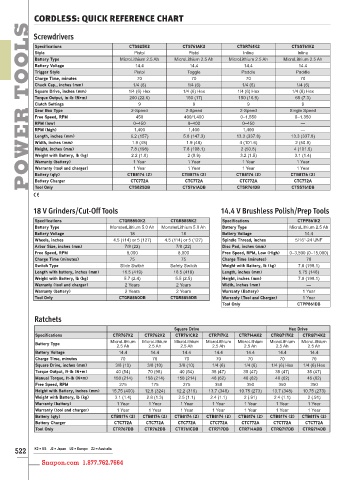

CORDLESS: QUICK REFERENCE CHART
TOOLS Specifications MicroLithium 2.5 Ah MicroLithium 2.5 Ah MicroLithium 2.5 Ah MicroLithium 2.5 Ah
Screwdrivers
CTS761AK2
CTSS761K2
CTS825K2
CTSR761K2
Inline
Inline
Pistol
Pistol
Style
Battery Type
14.4
14.4
14.4
14.4
Battery Voltage
Paddle
Pistol
Paddle
Toggle
Trigger Style
70
70
70
70
Charge Time, minutes
1/4 (6)
1/4 (6)
1/4 (6)
1/4 (6)
Chuck Cap., inches (mm)
1/4 (6) Hex
Square Drive, inches (mm)
150 (16.9)
65 (7.3)
150 (17)
200 (22.6)
Torque Output, in-lb (N•m)
9
9
9
9
Clutch Settings 1/4 (6) Hex 1/4 (6) Hex 1/4 (6) Hex Single Speed
POWER RPM (high) CTB8174 (2) CTB8174 (2) CTB8174 (2) CTB8174 (2)
2-Speed
2-Speed
2-Speed
Gear Box Type
0–1,350
400/1,400
450
0–1,550
Free Speed, RPM
0–400
0–450
—
0–450
RPM (low)
1,400
1,400
—
1,400
5.8 (147.3)
13.3 (337.8)
13.3 (337.8)
6.2 (157)
Length, inches (mm)
4 (101.6)
1.9 (48)
2 (50.8)
1.9 (48)
Width, inches (mm)
2 (50.8)
7.8 (198)
4 (101.6)
7.8 (198.1)
Height, inches (mm)
3.2 (1.5)
2 (0.9)
2.2 (1.0)
3.1 (1.4)
Weight with Battery, lb (kg)
1 Year
1 Year
1 Year
1 Year
Warranty (battery)
1 Year
1 Year
1 Year
1 Year
Warranty (tool and charger)
Battery (qty)
Battery Charger
CTC772A
CTC772A
CTC772A
CTC772A
Tool Only
CTSS761DB
CTSR761DB
18 V Grinders/Cut-Off Tools CTS825DB CTS761ADB 14.4 V Brushless Polish/Prep Tools
Specifications CTGR8850K2 CTGR8855K2 Specifications CTPP861K2
Battery Type MonsterLithium 5.0 Ah MonsterLithium 5.0 Ah Battery Type MicroLithium 2.5 Ah
Battery Voltage 18 18 Battery Voltage 14.4
Wheels, inches 4.5 (114) or 5 (127) 4.5 (114) or 5 (127) Spindle Thread, inches 5/16ʺ-24 UNF
Arbor Size, inches (mm) 7/8 (22) 7/8 (22) Disc Pad, inches (mm)
Free Speed, RPM 8,000 8,000 Free Speed, RPM, Low (High) 0–3,500 (0–15,000)
Charge Time (minutes) 75 75 Charge Time (minutes) 70
Switch Type Slide Switch Safety Switch Weight with Battery, lb (kg) 7.8 (198.1)
Length with battery, inches (mm) 16.5 (419) 16.5 (419) Length, inches (mm) 5.75 (146)
Weight with Battery, lb (kg) 5.7 (2.4) 5.5 (2.5) Height, inches (mm) 7.8 (198.1)
Warranty (tool and charger) 2 Years 2 Years Width, inches (mm) —
Warranty (battery) 2 Years 2 Years Warranty (Battery) 1 Year
Tool Only CTGR8850DB CTGR8855DB Warranty (Tool and Charger) 1 Year
Tool Only CTPP861DB
Ratchets
Square Drive Hex Drive
Specifications CTR767K2 CTR762K2 CTR761CK2 CTR717K2 CTR714AK2 CTRQ717K2 CTRQ714K2
MicroLithium MicroLithium MicroLithium MicroLithium MicroLithium MicroLithium MicroLithium
Battery Type 2.5 Ah 2.5 Ah 2.5 Ah 2.5 Ah 2.5 Ah 2.5 Ah 2.5 Ah
Battery Voltage 14.4 14.4 14.4 14.4 14.4 14.4 14.4
Charge Time, minutes 70 70 70 70 70 70 70
Square Drive, inches (mm) 3/8 (10) 3/8 (10) 3/8 (10) 1/4 (6) 1/4 (6) 1/4 (6) Hex 1/4 (6) Hex
Torque Output, ft-lb (N•m) 40 (54) 70 (95) 40 (54) 35 (47) 35 (47) 35 (47) 35 (47)
Manual Torque, ft-lb (N•m) 158 (214) 158 (214) 158 (214) 46 (62) 46 (62) 46 (62) 46 (62)
Free Speed, RPM 275 175 275 350 350 350 350
Height with Battery, inches (mm) 15.75 (400) 12.8 (324) 12.2 (310) 13.7 (348) 10.75 (273) 13.7 (348) 10.75 (273)
Weight with Battery, lb (kg) 3.1 (1.4) 2.8 (1.3) 2.5 (1.1) 2.4 (1.1) 2 (.91) 2.4 (1.1) 2 (.91)
Warranty (battery) 1 Year 1 Year 1 Year 1 Year 1 Year 1 Year 1 Year
Warranty (tool and charger) 1 Year 1 Year 1 Year 1 Year 1 Year 1 Year 1 Year
Battery (qty) CTB8174 (2) CTB8174 (2) CTB8174 (2) CTB8174 (2) CTB8174 (2) CTB8174 (2) CTB8174 (2)
Battery Charger CTC772A CTC772A CTC772A CTC772A CTC772A CTC772A CTC772A
Tool Only CTR767DB CTR762DB CTR761CDB CTR717DB CTR714ADB CTRQ717DB CTRQ714DB
522 K2 = US J2 = Japan U2 = Europe Z2 = Australia
