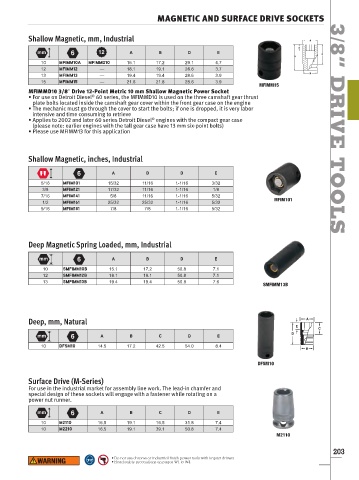

MAGNETIC AND SURFACE DRIVE SOCKETS

Shallow Magnetic, mm, Industrial

A B D E 3/8”

10 MFIMM10A MFIMMD10 15.1 17.2 29.1 4.7
12 MFIMM12 — 18.1 19.1 28.6 3.7
13 MFIMM13 — 19.4 19.4 28.6 3.9
15 MFIMM15 — 21.6 21.8 28.6 3.9
MFIMM15
MFIMMD10 3/8ʺ Drive 12-Point Metric 10 mm Shallow Magnetic Power Socket
®
• For use on Detroit Diesel 60 series, the MFIMMD10 is used on the three camshaft gear thrust
plate bolts located inside the camshaft gear cover within the front gear case on the engine
• The mechanic must go through the cover to start the bolts; if one is dropped, it is very labor
intensive and time consuming to retrieve DRIVE
• Applies to 2002 and later 60 series Detroit Diesel engines with the compact gear case
®
(please note: earlier engines with the tall gear case have 13 mm six-point bolts)
• Please use MFIMM13 for this application

Shallow Magnetic, inches, Industrial

A B D E
5/16 MFIM101 15/32 11/16 1-1/16 3/32
3/8 MFIM121 17/32 11/16 1-1/16 1/8
7/16 MFIM141 5/8 11/16 1-1/16 5/32 TOOLS
MFIM101
1/2 MFIM161 25/32 25/32 1-1/16 5/32
9/16 MFIM181 7/8 7/8 1-1/16 5/32

Deep Magnetic Spring Loaded, mm, Industrial

A B D E
10 SMFIMM10B 15.1 17.2 50.8 7.1
12 SMFIMM12B 18.1 19.1 50.8 7.1
13 SMFIMM13B 19.4 19.4 50.8 7.6
SMFIMM13B

Deep, mm, Natural

A B C D E
10 DFSM10 14.5 17.2 42.5 54.0 8.4

DFSM10

Surface Drive (M-Series)
For use in the industrial market for assembly line work. The lead-in chamfer and
special design of these sockets will engage with a fastener while rotating on a
power nut runner.
A B C D E
10 M2110 16.5 19.1 16.5 31.8 7.4
10 M2210 16.5 19.1 39.1 50.8 7.4
M2110

203
• Do not use chrome or industrial finish power tools with impact drivers
• Read safety precautions on pages W1 to W4
