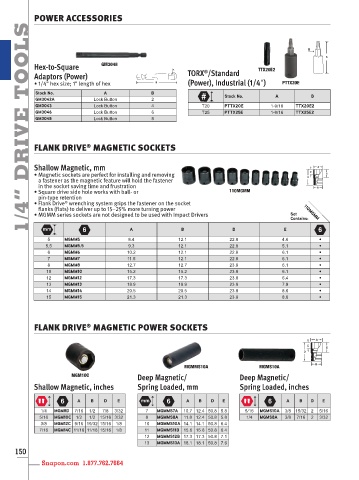

POWER ACCESSORIES
TOOLS Hex-to-Square GM3048 TORX /Standard TTX20E2 PTTX20E

®
Adaptors (Power)
(Power), Industrial (1/4ʺ)
• 1/4" hex size; 1" length of hex
A
Stock No.
B
A
2
GM3042A
4
Lock Button
GM3043 Lock Button B T20 Stock No. 1-9/16 TTX20E2
PTTX20E
DRIVE FLANK DRIVE MAGNETIC SOCKETS
Lock Button
T25
1-9/16
6
PTTX25E
GM3046
TTX25E2
8
Lock Button
GM3048
®
Shallow Magnetic, mm
• Magnetic sockets are perfect for installing and removing
a fastener as the magnetic feature will hold the fastener
in the socket saving time and frustration 110MGMM
1/4” • Flank Drive wrenching system grips the fastener on the socket Set 110MGMM
• Square drive side hole works with ball- or
pin-type retention
®
flanks (flats) to deliver up to 15–25% more turning power
• MGMM series sockets are not designed to be used with Impact Drivers
Contains:
A
B
E
D
5 MGMM5 8.4 12.1 22.8 4.6 •
5.5 MGMM5.5 9.3 12.1 22.8 5.1 •
6 MGMM6 10.2 12.1 22.8 6.1 •
7 MGMM7 11.5 12.1 22.8 6.1 •
8 MGMM8 12.7 12.7 23.8 6.1 •
10 MGMM10 15.2 15.2 23.8 6.1 •
12 MGMM12 17.3 17.3 23.8 6.4 •
13 MGMM13 18.9 18.9 23.8 7.9 •
14 MGMM14 20.5 20.5 23.8 8.6 •
15 MGMM15 21.3 21.3 23.8 8.6 •
®
FLANK DRIVE MAGNETIC POWER SOCKETS

MGMMS10A MGMS10A
MGM10C Deep Magnetic/ Deep Magnetic/
Shallow Magnetic, inches Spring Loaded, mm Spring Loaded, inches

A B D E A B D E A B D E
1/4 MGM8D 7/16 1/2 7/8 3/32 7 MGMMS7A 10.7 12.4 50.8 5.8 5/16 MGMS10A 3/8 15/32 2 5/16
5/16 MGM10C 1/2 1/2 15/16 3/32 8 MGMMS8A 11.8 12.4 50.8 5.8 1/4 MGMS8A 3/8 7/16 2 3/32
3/8 MGM12C 9/16 19/32 15/16 1/8 10 MGMMS10A 14.1 14.1 50.8 6.4
7/16 MGM14C 11/16 11/16 15/16 1/8 11 MGMMS11B 15.6 15.6 50.8 6.4
12 MGMMS12B 17.3 17.3 50.8 7.1
13 MGMMS13A 18.1 18.1 50.8 7.6
150
