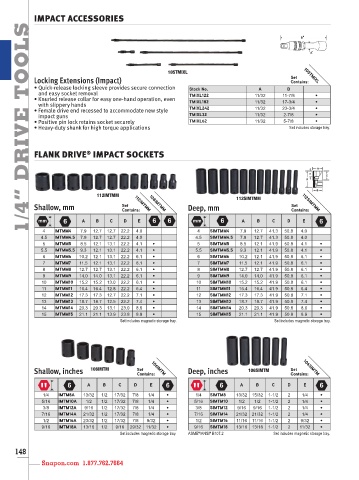

IMPACT ACCESSORIES
TOOLS Locking Extensions (Impact) 105TMIXL Set 105TMIXL

Contains:
• Quick-release locking sleeve provides secure connection
B
A
and easy socket removal
TMIXL122
• Knurled release collar for easy one-hand operation, even
17-3/4
11/32
TMIXL182
with slippery hands Stock No. 11/32 11-7/8 • • • • •
11/32
23-3/4
TMIXL242
DRIVE • Heavy-duty shank for high torque applications Set includes storage tray.
• Female drive end recessed to accommodate new style
11/32
2-7/8
TMIXL32
impact guns
5-7/8
11/32
TMIXL62
• Positive pin lock retains socket securely
FLANK DRIVE IMPACT SOCKETS
®
4 1/4” A B C Contains: E A B C D Contains:
Shallow, mm 112IMTMM Set 112IMTMM 108IMTMM Deep, mm 112SIMTMM Set 112SIMTMM
E
D
4
7.9
22.2
4.0
12.7
12.7
4.5 IMTMM4 7.9 12.7 12.7 22.2 4.0 4.5 SIMTMM4 7.9 12.7 41.3 50.8 4.0
12.7
7.9
4.0
50.8
41.3
IMTMM4.5
SIMTMM4.5
5 IMTMM5 8.5 12.1 13.1 22.2 4.1 • 5 SIMTMM5 8.5 12.1 41.9 50.8 4.1 •
5.5 IMTMM5.5 9.3 12.1 13.1 22.2 4.1 • 5.5 SIMTMM5.5 9.3 12.1 41.9 50.8 4.1 •
6 IMTMM6 10.2 12.1 13.1 22.2 6.1 • 6 SIMTMM6 10.2 12.1 41.9 50.8 6.1 •
7 IMTMM7 11.5 12.1 13.1 22.2 6.1 • 7 SIMTMM7 11.5 12.1 41.9 50.8 6.1 •
8 IMTMM8 12.7 12.7 13.1 22.2 6.1 • 8 SIMTMM8 12.7 12.7 41.9 50.8 6.1 •
9 IMTMM9 14.0 14.0 13.1 22.2 6.1 • 9 SIMTMM9 14.0 14.0 41.9 50.8 6.1 •
10 IMTMM10 15.2 15.2 13.0 22.2 6.1 • 10 SIMTMM10 15.2 15.2 41.9 50.8 6.1 •
11 IMTMM11 16.4 16.4 12.8 22.2 6.4 • 11 SIMTMM11 16.4 16.4 41.9 50.8 6.4 •
12 IMTMM12 17.3 17.3 12.7 22.2 7.1 • 12 SIMTMM12 17.3 17.3 41.9 50.8 7.1 •
13 IMTMM13 18.7 18.7 12.5 22.2 7.4 • 13 SIMTMM13 18.7 18.7 41.9 50.8 7.4 •
14 IMTMM14 20.3 20.3 13.1 23.0 8.6 • 14 SIMTMM14 20.3 20.3 41.9 50.8 8.6 •
15 IMTMM15 21.1 21.1 13.9 23.8 8.9 • 15 SIMTMM15 21.1 21.1 41.9 50.8 8.9 •
Set includes magnetic storage tray. Set includes magnetic storage tray.
Shallow, inches 106IMTM Set 106IMTM Deep, inches 106SIMTM Set 106SIMTM
Contains:
Contains:
A B C D E A B C D E
1/4 IMTM8A 13/32 1/2 17/32 7/8 1/4 • 1/4 SIMTM8 13/32 15/32 1-1/2 2 1/4 •
5/16 IMTM10A 1/2 1/2 17/32 7/8 1/4 • 5/16 SIMTM10 1/2 1/2 1-1/2 2 1/4 •
3/8 IMTM12A 9/16 1/2 17/32 7/8 1/4 • 3/8 SIMTM12 9/16 9/16 1-1/2 2 1/4 •
7/16 IMTM14A 21/32 1/2 17/32 7/8 1/4 • 7/16 SIMTM14 21/32 21/32 1-1/2 2 1/4 •
1/2 IMTM16A 23/32 1/2 17/32 7/8 9/32 • 1/2 SIMTM16 11/16 11/16 1-1/2 2 9/32 •
9/16 IMTM18A 13/16 1/2 9/16 29/32 11/32 • 9/16 SIMTM18 13/16 13/16 1-1/2 2 11/32 •
Set includes magnetic storage tray. ASME /ANSI B107.2 Set includes magnetic storage tray.
®
®
148

Snapon.com 1.877.762.7664
