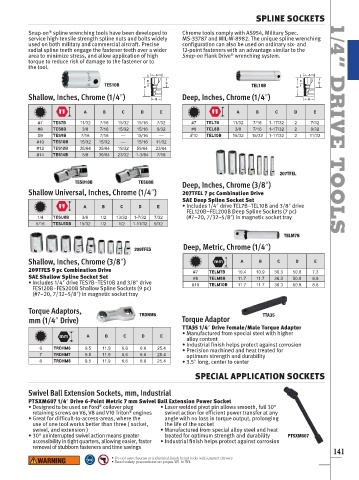

SPLINE SOCKETS

Snap-on spline wrenching tools have been developed to Chrome tools comply with AS954, Military Spec.
®
service high-tensile strength spline nuts and bolts widely MS-33787 and MIL-W-8982. The unique spline wrenching
used on both military and commercial aircraft. Precise configuration can also be used on ordinary six- and 1/4”
radial spline teeth engage the fastener teeth over a wider 12-point fasteners with an advantage similar to the
®
area to minimize stress, and allow application of high Snap-on Flank Drive wrenching system.
torque to reduce risk of damage to the fastener or to
the tool.

TES10B TEL10B
Shallow, Inches, Chrome (1/4ʺ) Deep, Inches, Chrome (1/4ʺ)

A B C D E A B C D E DRIVE
#7 TES7B 11/32 7/16 15/32 15/16 7/32 #7 TEL7B 11/32 7/16 1-17/32 2 7/32
#8 TES8B 3/8 7/16 15/32 15/16 9/32 #8 TEL8B 3/8 7/16 1-17/32 2 9/32
#9 TES9B 7/16 7/16 — 15/16 — #10 TEL10B 15/32 15/32 1-17/32 2 11/32
#10 TES10B 15/32 15/32 — 15/16 11/32
#12 TES12B 35/64 35/64 19/32 59/64 23/64
#14 TES14B 5/8 39/64 23/32 1-3/64 7/16

207TFEL
TESU10B TESU8B
Deep, Inches, Chrome (3/8ʺ)
Shallow Universal, Inches, Chrome (1/4ʺ) 207TFEL 7 pc Combination Drive TOOLS
SAE Deep Spline Socket Set
A B C D E • Includes 1/4ʺ drive TEL7B–TEL10B and 3/8ʺ drive
FEL120B–FEL200B Deep Spline Sockets (7 pc)
1/4 TESU8B 3/8 1/2 13/32 1-7/32 7/32 (#7–20, 7/32–5/8ʺ) in magnetic socket tray
5/16 TESU10B 15/32 1/2 1/2 1-11/32 9/32
TELM7B
Deep, Metric, Chrome (1/4ʺ)
209TFES
Shallow, Inches, Chrome (3/8ʺ) A B C D E
209TFES 9 pc Combination Drive #7 TELM7B 10.4 10.9 36.3 50.8 7.3
SAE Shallow Spline Socket Set #8 TELM8B 11.7 11.7 36.3 50.8 8.8
• Includes 1/4ʺ drive TES7B–TES10B and 3/8ʺ drive #10 TELM10B 11.7 11.7 36.3 50.8 8.8
FES120B–FES200B Shallow Spline Sockets (9 pc)
(#7–20, 7/32–5/8ʺ) in magnetic socket tray

Torque Adaptors,
TRDHM6 TTA35
mm (1/4ʺ Drive) Torque Adaptor
TTA35 1/4ʺ Drive Female/Male Torque Adaptor
• Manufactured from special steel with higher
A B C D E
alloy content
• Industrial finish helps protect against corrosion
6 TRDHM6 9.5 11.9 6.6 6.6 25.4 • Precision machined and heat treated for
7 TRDHM7 9.5 11.9 6.6 6.6 25.4 optimum strength and durability
8 TRDHM8 9.5 11.9 6.6 6.6 25.4 • 3.5ʺ long, center to center
SPECIAL APPLICATION SOCKETS

Swivel Ball Extension Sockets, mm, Industrial
PTSXM607 1/4ʺ Drive 6-Point Metric 7 mm Swivel Ball Extension Power Socket
®
• Designed to be used on Ford coilover plug • Laser welded pivot pin allows smooth, full 30°
retaining screws on V6, V8 and V10 Triton engines swivel action for efficient power transfer at any
®
• Great for difficult-to-access-areas, where the angle with no loss in torque output, prolonging
use of one tool works better than three ( socket, the life of the socket
swivel, and extension ) • Manufactured from special alloy steel and heat
• 30° uninterrupted swivel action means greater treated for optimum strength and durability PTSXM607
accessibility in tight quarters, allowing easier, faster • Industrial finish helps protect against corrosion
removal of stubborn fasteners and time savings
141
• Do not use chrome or industrial finish hand tools with impact drivers
• Read safety precautions on pages W1 to W4
