ENGINEER TO ORDER

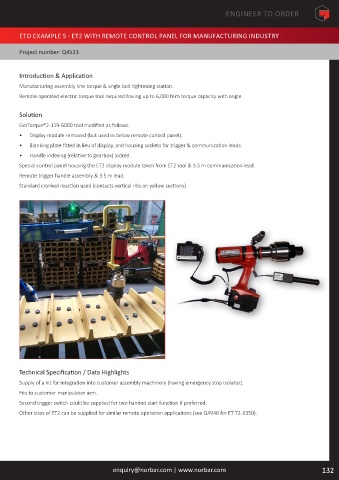

ETO EXAMPLE 5 - ET2 WITH REMOTE CONTROL PANEL FOR MANUFACTURING INDUSTRY

Project number: Q4523

Introduction & Application
Manufacturing assembly line torque & angle bolt tightening station.
Remote operated electric torque tool required having up to 6,000 N·m torque capacity with angle.

Solution

EvoTorque®2-119-6000 tool modified as follows:
• Display module removed (but used in below remote control panel)�
• Blanking plate fitted in lieu of display, and housing sockets for trigger & communication leads.
• Handle indexing (relative to gearbox) locked.

Special control panel housing the ET2 display module taken from ET2 tool & 3.5 m communication lead.
Remote trigger handle assembly & 3.5 m lead.
Standard cranked reaction used (contacts vertical ribs on yellow sections).

Technical Specification / Data Highlights

Supply of a kit for integration into customer assembly machinery (having emergency stop isolator).
Fits to customer manipulator arm�

Second trigger switch could be supplied for two handed start function if preferred.
Other sizes of ET2 can be supplied for similar remote operation applications (see Q4940 for ET-72-1350).
