ENGINEER TO ORDER

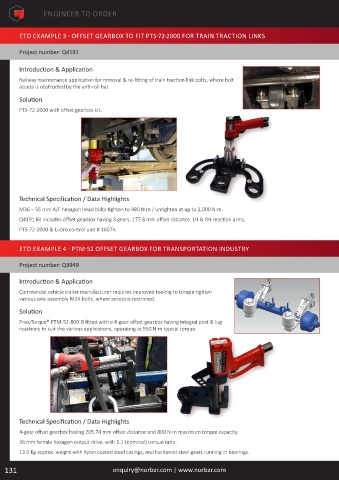

ETO EXAMPLE 3 - OFFSET GEARBOX TO FIT PTS-72-2000 FOR TRAIN TRACTION LINKS

Project number: Q4191

Introduction & Application

Railway maintenance application for removal & re-fitting of train traction link bolts, where bolt
access is obstructed by the anti-roll bar.

Solution
PTS-72-2000 with offset gearbox kit.

Technical Specification / Data Highlights

M36 – 55 mm A/F hexagon head bolts tighten to 980 N·m / untighten at up to 2,000 N·m.
Q4191 kit includes offset gearbox having 3 gears, 177.8 mm offset distance, LH & RH reaction arms,

PTS-72-2000 & Lubro control unit # 16074.

ETO EXAMPLE 4 - PTM-52 OFFSET GEARBOX FOR TRANSPORTATION INDUSTRY

Project number: Q3949

Introduction & Application
Commercial vehicle trailer manufacturer requires improved tooling to torque tighten
various axle assembly M24 bolts, where access is restricted�
Solution

PneuTorque® PTM-52-800-B fitted with a 4-gear offset gearbox having integral post & lug
reactions to suit the various applications, operating at 550 N·m typical torque.

Technical Specification / Data Highlights

4-gear offset gearbox having 205.74 mm offset distance and 800 N·m maximum torque capacity.
36 mm female hexagon output drive, with 1:1 (nominal) torque ratio.
13�0 Kg approx� weight with Xylan coated steel casings, and hardened steel gears running in bearings�
