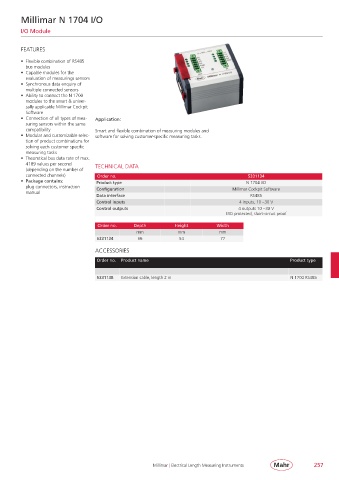

Millimar N 1704 I/O

I/O Module

FEATURES

• Flexible combination of RS485
bus modules
• Capable modules for the
evaluation of measurings sensors
• Synchronous data enquiry of
multiple connected sensors
• Ability to connect the N 1700
modules to the smart & univer-
sally applicable Millimar Cockpit
Software
• Connection of all types of mea- Application:
suring sensors within the same
compatibility Smart and flexible combination of measuring modules and
• Modular and customizable selec- software for solving customer-specific measuring tasks.
tion of product combinations for
solving each customer specific
measuring tasks
• Theoretical bus data rate of max.
4189 values per second TECHNICAL DATA
(depending on the number of
connected channels) Order no. 5331134
• Package contains: Product type N 1704 I/O
plug connectors, instruction Configuration Millimar Cockpit Software
manual
Data interface RS485
Control inputs 4 inputs, 10 – 30 V
Control outputs 4 outputs 10 – 30 V
ESD protected, short-circuit proof

Order no. Depth Height Width
mm mm mm
5331134 66 54 77
ACCESSORIES
Order no. Product name Product type

5331138 Extension cable, length 2 m N 1700 RS485

Millimar | Electrical Length Measuring Instruments 257
