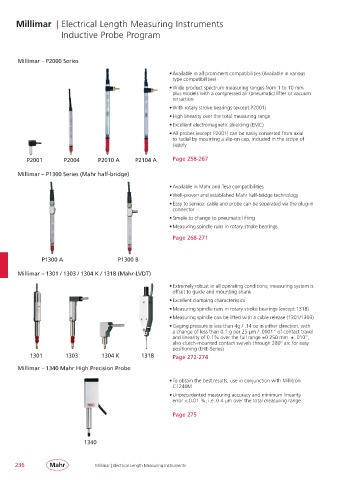

Millimar | Electrical Length Measuring Instruments

Inductive Probe Program

Millimar – P2000 Series
• Available in all prominent compatibilities (Available in various
type compatibilities)
• Wide product spectrum measuring ranges from 1 to 10 mm
plus models with a compressed air (pneumatic) lifter or vacuum
retraction
• With rotary stroke bearings (except P2001)
• High linearity over the total measuring range
• Excellent electromagnetic shielding (EMC)
• All probes (except P2001) can be easily converted from axial
to radial by mounting a slip-on cap, included in the scope of
supply

P2001 P2004 P2010 A P2104 A Page 258-267

Millimar – P1300 Series (Mahr half-bridge)

• Available in Mahr and Tesa compatibilities
• Well-proven and established Mahr half-bridge technology
• Easy to service: cable and probe can be seperated via the plug-in
connector
• Simple to change to pneumatic lifting
• Measuring spindle runs in rotary stroke bearings
Page 268-271

P1300 A P1300 B

Millimar – 1301 / 1303 / 1304 K / 1318 (Mahr-LVDT)

• Extremely robust in all operating conditions; measuring system is
offset to guide and mounting shank
• Excellent clamping characteristics
• Measuring spindle runs in rotary stroke bearings (except 1318)
• Measuring spindle can be lifted with a cable release (1301/1303)
• Gaging pressure is less than 4g / .14 oz in either direction, with
a change of less than 0.1 g per 25 µm / .0001“ of contact travel
and linearity of 0.1% over the full range ±0.250 mm ± .010“,
also clutch-mounted contact swivels through 280° arc for easy
positioning (EHE-Series)
1301 1303 1304 K 1318 Page 272-274

Millimar – 1340 Mahr High Precision Probe

• To obtain the best results, use in conjunction with Millitron
C1240M

• Unprecedented measuring accuracy and minimum linearity
error < 0.01 %, i.e. 0.4 µm over the total measuring range
Page 275

1340

236 Millimar | Electrical Length Measuring Instruments
