P. 141

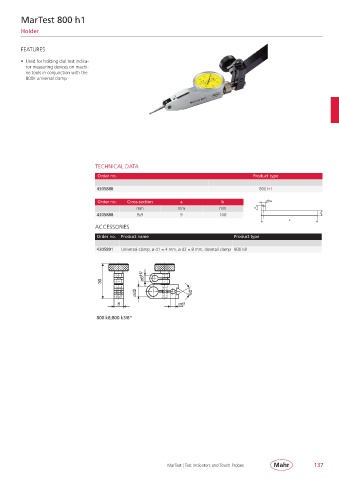

MarTest 800 h1
Holder
FEATURES
• Used for holding dial test indica-
tor measuring devices on machi-
ne tools in conjunction with the
800k universal clamp
TECHNICAL DATA
Order no. Product type
4305888 800 h1
Order no. Cross-section a b Ø6 h6
mm mm mm 9
4305888 9x9 9 100 a
b
ACCESSORIES
Order no. Product name Product type
4305891 Universal clamp, ø d1 = 4 mm, ø d2 = 8 mm, dovetail clamp 800 k8
Ø6 H7
30
Ød2 60°
8 Ød1
800 k8;800 k3/8”
MarTest | Test Indicators and Touch Probes 137
