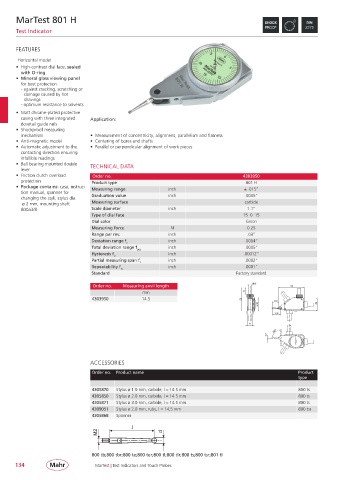

MarTest 801 H

Test Indicator

FEATURES

Horizontal model
• High-contrast dial face, sealed
with O-ring
• Mineral glass viewing panel
for best protection:
- against cracking, scratching or
damage caused by hot
shavings
- optimum resistance to solvents
• Matt chrome-plated protective
casing with three integrated Application:
dovetail guide rails
• Shockproof measuring
mechanism • Measurement of concentricity, alignment, parallelism and flatness
• Anti-magnetic model • Centering of bores and shafts
• Automatic adjustment to the • Parallel or perpendicular alignment of work pieces
contacting direction ensuring
infallible readings
• Ball bearing mounted double TECHNICAL DATA
lever
• Friction clutch overload Order no. 4303950
protection Product type 801 H
• Package contains: case, instruc- Measuring range inch ± .015”
tion manual, spanner for Graduation value inch .0005”
changing the styli, stylus dia.
ø 2 mm, mounting shaft Measuring surface carbide
800a3/8 Scale diameter inch 1.1”
Type of dial face 15– 0– 15
Dial color Green
Measuring force N 0.25
Range per rev. inch .03”
Deviation range f e inch .0004”
Total deviation range f inch .0005”
ges
Hysteresis f inch .00012”
u
Partial measuring span f t inch .0002”
Repeatability f inch .0001”
w
Standard Factory standard
Order no. Measuring anvil length 8h6 56
mm 17
4303950 14.5 53 13,6
ø 30 29
17,8

9
110°
ø 2

ACCESSORIES
Order no. Product name Product
type

4305870 Stylus ø 1.0 mm, carbide, l = 14.5 mm 800 ts
4305850 Stylus ø 2.0 mm, carbide, l = 14.5 mm 800 ts
4305871 Stylus ø 3.0 mm, carbide, l = 14.5 mm 800 ts
4309051 Stylus ø 2.0 mm, ruby, l = 14.5 mm 800 tsr
4305868 Spanner

l
M2 d

800 tb;800 tbr;800 te;800 ter;800 tl;800 tlr;800 ts;800 tsr;801 tl
