P. 100

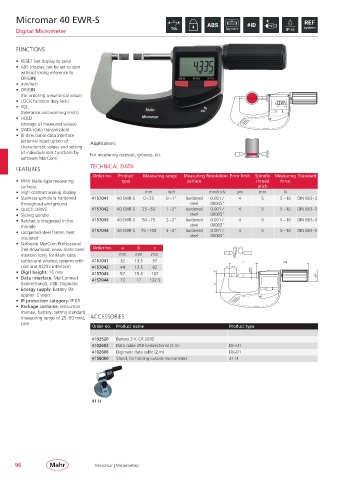

Micromar 40 EWR-S

       Digital Micrometer


       FUNCTIONS

       •  RESET (set display to zero)
       •  ABS (display can be set to zero
        without losing reference to
        ORIGIN)
       •  mm/inch
       •  ORIGIN
        (for entering a numerical value)
       •  LOCK function (key lock)
       •  TOL                                                                                     REL  mm
        (tolerance and warning limits)
       •  HOLD
        (storage of measured values)
       •  DATA (data transmission)
       •  Bi-directional data interface
        (external input option of   Application:
        characteristic values and setting
        of individual lock functions by   For measuring recesses, grooves, etc.
        software MarCom)
                                 TECHNICAL DATA
       FEATURES
                                  Order no.  Product   Measuring range  Measuring Resolution Error limit  Spindle  Measuring  Standard
       •  With blade-type measuring         type                   surface                 thread   force
        surfaces                                                                            pitch
       •  High contrast analog display              mm      inch          mm/inch   µm      mm       N
       •  Stainless spindle is hardened   4157041  40 EWR-S  0 – 25  0 – 1”  hardened   0.001 /   4  5  5 – 10  DIN 863– 3
        throughout and ground                                       steel  .00005”
       •  QUICK DRIVE            4157042  40 EWR-S  25 – 50  1 – 2”  hardened   0.001 /   4  5     5 – 10  DIN 863– 3
       •  Sliding spindle                                           steel  .00005”
       •  Ratchet is integrated in the   4157043  40 EWR-S  50 – 75  2 – 3”  hardened   0.001 /   4  5  5 – 10  DIN 863– 3
        thimble                                                     steel  .00005”
       •  Lacquered steel frame, heat   4157044  40 EWR-S  75 – 100  3 – 4”  hardened   0.001 /   4  5  5 – 10  DIN 863– 3
        insulated                                                   steel  .00005”
       •  Software MarCom Professional
        free download: www.mahr.com/  Order no.  a  b  c
        marcom (only for Mahr data         mm    mm   mm
        cables and wireless systems with   4157041  32  11.5  57
        USB and RS232 interface)  4157042  44   13.5   82
       •  Digit height: 10 mm    4157043   57   15.5  107
       •  Data interface: MarConnect   4157044  73  17  132.5
        (bidirectional), USB, Digimatic
       •  Energy supply: Battery life
        approx. 2 years
       •  IP protection category: IP 65
       •  Package contains: instruction
        manual, battery, setting standard
        (measuring range of 25– 50 mm),  ACCESSORIES
        case
                                 Order no.  Product name                          Product type

                                 4102520  Battery 3 V, CR 2032
                                 4102603  Data cable USB bi-directional (2 m)     DK-U1
                                 4102606  Digimatic data cable (2 m)              DK-D1
                                 4158000  Stand, for holding outside micrometers  41 H







                                 41 H












      96                          Micromar | Micrometers
