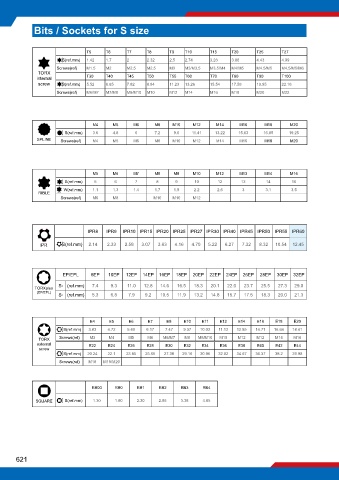

Bits / Sockets for S size

T5 T6 T7 T8 T9 T10 T15 T20 T25 T27
S(ref.mm) 1.42 1.7 2 2.32 2.5 2.74 3.28 3.86 4.43 4.99
Screws(ref) M1.5 M2 M2.5 M2.5 M3 M3/M3.5 M3.5/M4 M4/M5 M4.5/M5 M4.5/M5/M6
TORX
internal T30 T40 T45 T50 T55 T60 T70 T80 T90 T100
screw S(ref.mm) 5.52 6.65 7.82 8.84 11.23 13.26 15.54 17.58 19.95 22.16
Screws(ref) M6/M7 M7/M8 M8/M10 M10 M12 M14 M16 M18 M20 M22

M4 M5 M6 M8 M10 M12 M14 M16 M18 M20
S(ref.mm) 3.6 4.8 6 7.2 9.6 11.41 13.22 15.63 16.85 19.25
SPLINE Screws(ref) M4 M5 M6 M8 M10 M12 M14 M16 M18 M20

M5 M6 M7 M8 M9 M10 M12 M13 M14 M16
S(ref.mm) 5 6 7 8 9 10 12 13 14 16
W(ref.mm) 1.1 1.3 1.4 1.7 1.9 2.2 2.6 3 3.1 3.5
RIBLE
Screws(ref) M6 M8 M10 M10 M12

IPR8 IPR9 IPR10 IPR15 IPR20 IPR25 IPR27 IPR30 IPR40 IPR45 IPR50 IPR55 IPR60

IPR S(ref.mm) 2.14 2.33 2.58 3.07 3.63 4.16 4.70 5.22 6.27 7.32 8.32 10.54 12.45

EP/EPL 8EP 10EP 12EP 14EP 16EP 18EP 20EP 22EP 24EP 26EP 28EP 30EP 32EP
S1 (ref.mm) 7.4 9.3 11.0 12.8 14.6 16.5 18.3 20.1 22.0 23.7 25.5 27.3 29.0
TORXplus
(EP/EPL)
S2 (ref.mm) 5.3 6.8 7.9 9.2 10.5 11.9 13.2 14.8 15.7 17.5 18.3 20.0 21.3

E4 E5 E6 E7 E8 E10 E11 E12 E14 E16 E18 E20
S(ref.mm) 3.83 4.72 5.69 6.17 7.47 9.37 10.03 11.12 12.85 14.71 16.64 18.41
TORX Screws(ref) M3 M4 M5 M6 M6/M7 M8 M8/M10 M10 M12 M12 M14 M16
external E22 E24 E26 E28 E30 E32 E34 E36 E38 E40 E42 E44
screw
S(ref.mm) 20.24 22.1 23.85 25.65 27.38 29.16 30.96 32.82 34.67 36.37 38.2 39.98
Screws(ref) M18 M18/M20

RB00 RB0 RB1 RB2 RB3 RB4

SQUARE S(ref.mm) 1.30 1.80 2.30 2.86 3.38 4.85
