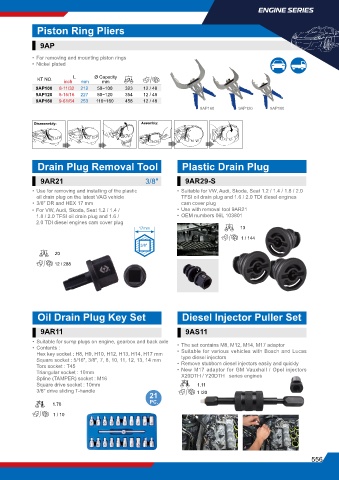

Page 597 - 蓝带金统立KINGTONY2025年样本

ENGINE SERIES

Piston Ring Pliers

9AP

• For removing and mounting piston rings
• Nickel plated

L
KT NO. inch mm Ø Capacity g
mm
9AP100 8-11/32 212 50~100 323 12 / 48
9AP120 8-15/16 227 80~120 354 12 / 48
9AP160 9-61/64 253 110~160 458 12 / 48
9AP160 9AP120 9AP100

Drain Plug Removal Tool Plastic Drain Plug

9AR21 3/8" 9AR29-S
• Use for removing and installing of the plastic • Suitable for VW, Audi, Skoda, Seat 1.2 / 1.4 / 1.8 / 2.0
oil drain plug on the latest VAG vehicle TFSI oil drain plug and 1.6 / 2.0 TDI diesel engines
• 3/8" DR and HEX 17 mm cam cover plug
• For VW, Audi, Skoda, Seat 1.2 / 1.4 / • Use with removal tool 9AR21
1.8 / 2.0 TFSI oil drain plug and 1.6 / • OEM numbers 06L 103801
2.0 TDI diesel engines cam cover plug
17mm g 13

1 / 144
3/8"
g 20
12 / 288

Oil Drain Plug Key Set Diesel Injector Puller Set

9AR11 9AS11
• Suitable for sump plugs on engine, gearbox and back axle
• Contents : • The set contains M8, M12, M14, M17 adaptor
Hex key socket : H8, H9, H10, H12, H13, H14, H17 mm • Suitable for various vehicles with Bosch and Lucas
Square socket : 5/16", 3/8", 7, 8, 10, 11, 12, 13, 14 mm type diesel injectors
Torx socket : T45 • Remove stubborn diesel injectors easily and quickly
Triangular socket : 10mm • New M17 adaptor for GM Vauxhall / Opel injectors
Spline (TAMPER) socket : M16 X20DTH / Y20DTH series engines
Square drive socket : 10mm Kg 1.11
3/8" drive sliding T-handle 1 /20
21
Kg 1.70 PC.
1 / 10

556
