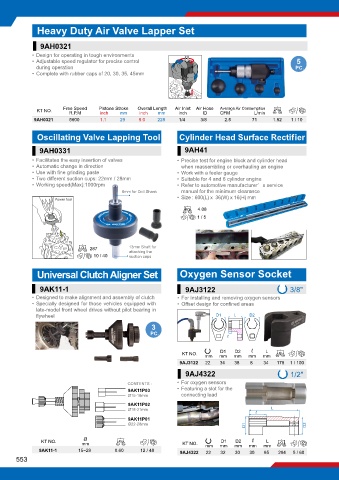

Page 594 - 蓝带金统立KINGTONY2025年样本

Heavy Duty Air Valve Lapper Set

9AH0321
• Design for operating in tough environments
• Adjustable speed regulator for precise control 5
during operation PC.
• Complete with rubber caps of 20, 30, 35, 45mm

KT NO. Free Speed Pistone Stroke Overall Length Air Inlet Air Hose Average Air Consumption Kg
R.P.M
ID
CFM L/min
inch
inch mm
inch mm
9AH0321 5600 1.1 29 9.0 228 1/4 3/8 2.5 71 1.82 1 / 10
Oscillating Valve Lapping Tool Cylinder Head Surface Rectif ier
9AH0331 9AH41
• Facilitates the easy insertion of valves • Precise test for engine block and cylinder head
• Automatic change in direction when reassembling or overhauling an engine
• Use with fine grinding paste • Work with a feeler gauge
• Two different suction cups: 22mm / 28mm • Suitable for 4 and 6 cylinder engine
• Working speed(Max):1000rpm • Refer to automotive manufacturer’s service
8mm for Drill Shank manual for the minimum clearance
• Size : 600(L) x 36(W) x 16(H) mm
Power tool
kg 4.08
1 / 5

↓
↓

g 287 13mm Shaft for
10 / 40 attaching the
suction cups

Universal Clutch Aligner Set Oxygen Sensor Socket

9AK11-1 9AJ3122 3/8"
• Designed to make alignment and assembly of clutch • For installing and removing oxygen sensors
• Specially designed for those vehicles equipped with • Offset design for confined areas
late-model front wheel drives without pilot bearing in
flywheel D1 L D2

3
PC. l

ℓ
L
D2
D1
KT NO. mm mm mm mm g
mm
9AJ3122 22 34 38 8 34 178 1 / 100
9AJ4322 1/2"
CONTENTS : • For oxygen sensors
9AK11P03 • Featuring a slot for the
Ø15-18mm connecting lead
9AK11P02
Ø18-21mm L
l
9AK11P01
Ø22-28mm D1 D2

Ø
KT NO. mm Kg KT NO. D1 D2 ℓ L g
9AK11-1 15~28 0.60 12 / 48 9AJ4322 mm mm mm mm mm 294 5 / 60
85
30
22
32
30
553
