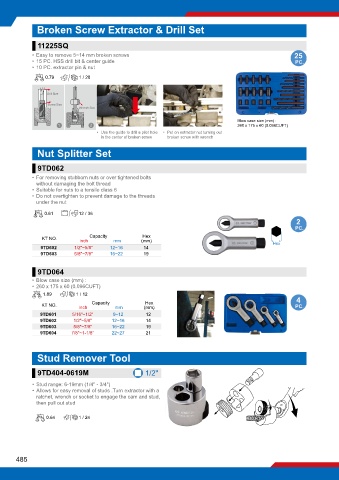

Broken Screw Extractor & Drill Set

11225SQ
• Easy to remove 5~14 mm broken screws 25
• 15 PC. HSS drill bit & center guide PC.
• 10 PC. extractor pin & nut
kg 0.79 1 / 20

Drill Size
Screw Size
Wrench Size

Blow case size (mm) :
1 2 260 x 175 x 60 (0.096CUFT)
• Use the guide to drill a pilot hole • Put on extractor nut turning out
in the center of broken screw broken screw with wrench

Nut Splitter Set

9TD062
• For removing stubborn nuts or over tightened bolts
without damaging the bolt thread
• Suitable for nuts to a tensile class 6
• Do not overtighten to prevent damage to the threads
under the nut
kg 0.61 12 / 36
2
PC.
Capacity
Hex
KT NO. inch mm (mm)
9TD602 1/2"~5/8" 12~16 14 Hex
9TD603 5/8"~7/8" 16~22 19

9TD064

• Blow case size (mm) :
• 260 x 175 x 60 (0.096CUFT)
kg 1.89 1 / 12
4
Hex
Capacity
KT NO. inch mm (mm) PC.
9TD601 5/16"~1/2" 9~12 12
9TD602 1/2"~5/8" 12~16 14
9TD603 5/8"~7/8" 16~22 19
9TD604 7/8"~1-1/8" 22~27 21

Stud Remover Tool

9TD404-0619M 1/2"

• Stud range: 6-19mm (1/4" - 3/4")
• Allows for easy removal of studs .Turn extractor with a
ratchet, wrench or socket to engage the cam and stud,
then pull out stud

kg 0.64 1 / 24
