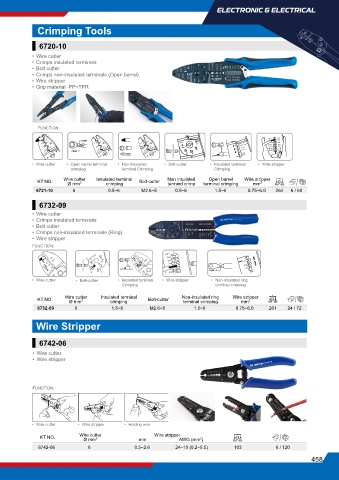

Page 499 - 蓝带金统立KINGTONY2025年样本

ELECTRONIC & ELECTRICAL

Crimping Tools

6720-10

• Wire cutter
• Crimps insulated terminals
• Bolt cutter
• Crimps non-insulated terminals (Open barrel)
• Wire stripper
• Grip material -PP+TPR

FUNCTION:

• Wire cutter • Open barrel terminal • Non-Insulated • Bolt-cutter • Insulated terminal • Wire stripper
crimping terminal Crimping Crimping

Open barrel
KT NO. Wire cutter Insulated terminal Bolt-cutter Non insulated terminal crimping Wire stripper g
crimping
termind crimp
mm
2
2
Ø mm
6721-10 6 0.5~6 M2.6~5 0.5~6 1.5~6 0.75~6.0 264 6 / 60
6732-09
• Wire cutter
• Crimps insulated terminals
• Bolt cutter
• Crimps non-insulated terminals (Ring)
• Wire stripper
FUNCTION:

• Wire cutter • Bolt-cutter • Insulated terminal • Wire stripper • Non-insulated ring
Crimping terminal crimping

KT NO. Wire cutter Insulated terminal Bolt-cutter Non-insulated ring Wire stripper g
2
crimping
terminal crimping
2
Ø mm
mm
6732-09 6 1.5~6 M2.6~5 1.5~6 0.75~6.0 261 24 / 72
Wire Stripper
6742-06

• Wire cutter
• Wire stripper

FUNCTION:

0.5 0.6
0.8 1.0
1.3 1.6 2.0
2.6
24 22 20 18 mm 0.5 0.6 0.8 1.0
16 14 1.3 1.6
12 2.0
10 AWG 24 22 20 18 2.6 mm
16 14 12
10 AWG
2.6 mm
0.5 0.6 0.8 1.0 1.3 1.6 2.0
24 22 20 18 16 14 12 10 AWG
• Wire cutter • Wire stripper • Holding wire
Wire stripper
KT NO. Wire cutter mm AWG (mm ) g
Ø mm
2
2
6742-06 6 0.5~2.6 24~10 (0.2~5.5) 103 6 / 120
458
