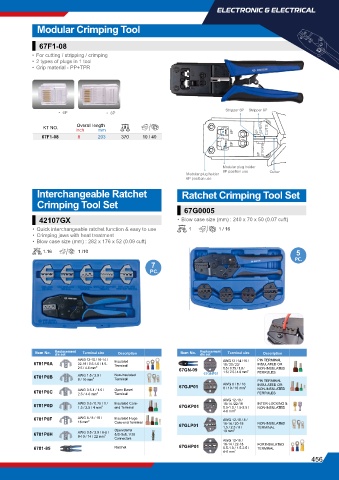

ELECTRONIC & ELECTRICAL

Modular Crimping Tool

67F1-08
• For cutting / stripping / crimping
• 2 types of plugs in 1 tool
• Grip material - PP+TPR

Stripper 6P Stripper 8P
• 6P • 8P
Overall length
KT NO. inch mm g 6P STRIPS CUTS
67F1-08 8 203 370 10 / 40 6P
8P

8P STRIPS

Modular plug holder
8P position use Cutter
Modular plug holder
6P position use
Interchangeable Ratchet Ratchet Crimping Tool Set
Crimping Tool Set
67G0005
42107GX • Blow case size (mm) : 240 x 70 x 50 (0.07 cuft)

• Quick interchangeable ratchet function & easy to use Kg 1 1 / 16
• Crimping jaws with heat treatment
• Blow case size (mm) : 282 x 176 x 52 (0.09 cuft)
Kg 1.16 1 /10 5
PC.
7
PC.

Item No. Replacement Terminal size Description Item No. Replacement Terminal size Description
die set
die set
AWG 12-10 / 16-14 / AWG 12 / 14 / 16 / PIN TERMINAL
6781P0A 22-18 / 0.5-1.0 / 1.5- Insulated 18 / 20 / 22/ INSULATED OR
Terminal
2.5 / 4-6 mm 2 67GN-09 0.5 / 0.75 / 1.0 / 2 NON-INSULATED
1.5 / 2.5 / 4.0 mm
6781P0B AWG 1.5 / 2.5 / Non-Insulated 67GNP01 FERRULES
Terminal
8 / 10 mm
2
PIN TERMINAL
67GJP01 AWG 6 / 8 / 10 2 INSULATED OR
6 / 10 / 16 mm
6781P0C AWG 0.5-1 / 1.5 / Open Barrel NON-INSULATED
FERRULES
Terminal
2
2.5 / 4-6 mm
AWG 12-10 /
6781P0D AWG 0.5 / 0.75 / 1 / Insulated Core- 67GKP01 16-14 / 22-18 INTER-LOCKING &
1.5 / 2.5 / 4 mm
0.5-1.0 / 1.5-2.5 /
end Terminal
2
NON-INSULATED
4-6 mm 2
6781P0F AWG 6 / 8 / 10 / Insulated Huge AWG 12-10 / 8 /
16 mm 2 Core-end Terminal NON-INSULATED
67GLP01 16-14 / 20-18
1.5 / 2.5 / 6 /
Open Barrel 10 mm 2 TERMINAL
6781P0H AWG 0.5 / 2.5 / 8-6 / & D-Sub, V.35
2
8-10 / 14 / 22 mm
Connectors AWG 12-10 /
6781-85 Ratchet 67GHP01 16-14 / 22-18 FOR INSULATED
0.5-1.0 / 1.5-2.5 /
TERMINAL
4-6 mm 2
456
