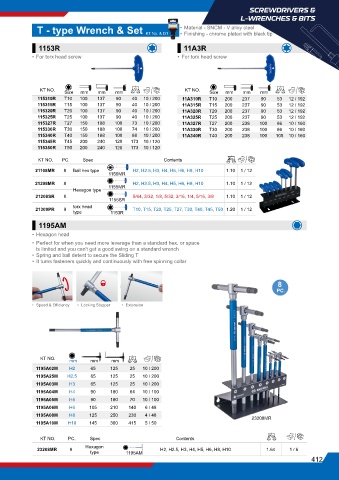

Page 453 - 蓝带金统立KINGTONY2025年样本

SCREWDRIVERS &
L-WRENCHES & BITS
• Material - SNCM - V alloy steel
T - type Wrench & Set KT No. & D1 • Finishing - chrome plated with black tip
1153R 11A3R

• For torx head screw • For torx head screw

KT NO. Size mm mm mm g KT NO. Size mm mm mm g
115310 R T10 100 137 90 40 10 / 200 11A310R T10 200 237 90 53 12 / 192
115315R T15 100 137 90 40 10 / 200 11A315R T15 200 237 90 53 12 / 192
115320 R T20 100 137 90 40 10 / 200 11A320R T20 200 237 90 53 12 / 192
115325R T25 100 137 90 40 10 / 200 11A325R T25 200 237 90 53 12 / 192
115327 R T27 150 188 100 73 10 / 200 11A327R T27 200 238 100 86 10 / 160
115330 R T30 150 188 100 74 10 / 200 11A330R T30 200 238 100 86 10 / 160
115340 R T40 150 188 100 88 10 / 200 11A340R T40 200 238 100 105 10 / 160
115345 R T45 200 240 120 173 10 / 120
115350R T50 200 240 120 173 10 / 120
KT NO. PC. Spec Contents Kg

21108MR 8 Ball hex type H2, H2.5, H3, H4, H5, H6, H8, H10 1.10 1 / 12
1150MR
21208MR 8 1155MR H2, H2.5, H3, H4, H5, H6, H8, H10 1.10 1 / 12
Hexagon type
21208SR 8 5/64, 3/32, 1/8, 5/32, 3/16, 1/4, 5/16, 3/8 1.10 1 / 12
1155SR
21309PR 9 torx head T10, T15, T20, T25, T27, T30, T40, T45, T50 1.20 1 / 12
type 1153R
1195AM

• Hexagon head
• Perfect for when you need more leverage than a standard hex, or space
is limited and you can't get a good swing on a standard wrench
• Spring and ball detent to secure the Sliding T
• It turns fasteners quickly and continuously with free spinning collar

8
PC.

• Speed & Efficiency • Locking Stopper • Extension

KT NO. mm mm mm g
1195A02M H2 65 125 25 10 / 200
1195A25M H2.5 65 125 25 10 / 200
1195A03M H3 65 125 25 10 / 200
1195A04M H4 90 180 64 10 / 100
1195A05M H5 90 180 70 10 / 100
1195A06M H6 105 210 140 6 / 48
1195A08M H8 125 250 230 4 / 48 23208MR
1195A10M H10 145 300 415 5 / 50

KT NO. PC. Spec Contents Kg

23208MR 8 Hexagon H2, H2.5, H3, H4, H5, H6, H8, H10 1.64 1 / 6
type 1195AM
412
