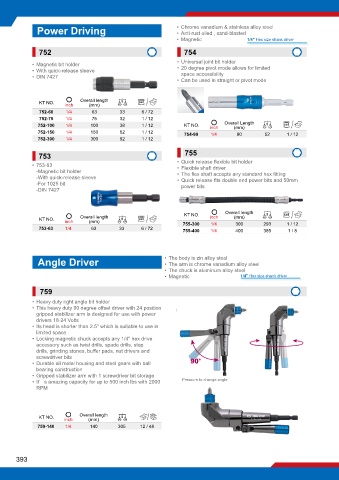

Page 434 - 蓝带金统立KINGTONY2025年样本

Power Driving • Chrome vanadium & stainless alloy steel
• Anti-rust oiled , sand-blasted
• Magnetic 1/4" Hex size shank driver
752 754

• Universal joint bit holder
• Magnetic bit holder
• With quick-release sleeve • 20 degree pivot mode allows for limited
• DIN 7427 space accessibility
• Can be used in straight or pivot mode

KT NO. inch Overall length g set
(mm)
752-60 1/4 63 33 6 / 72
752-75 1/4 75 32 1 / 12
752-100 1/4 100 38 1 / 12 KT NO. inch Overall Length g set
(mm)
752-150 1/4 150 52 1 / 12 754-90 1/4 90 52 1 / 12
752-300 1/4 300 92 1 / 12

753 755
• 753-63 • Quick release flexible bit holder
• Flexible shaft driver
-Magnetic bit holder • The flex shaft accepts any standard hex fitting
-With quick-release sleeve • Quick release fits double end power bits and 50mm
-For 1025 bit power bits
-DIN 7427

(mm)
KT NO. inch Overall length g set KT NO. inch Overall length g set
(mm)
753-63 1/4 63 33 6 / 72 755-300 1/4 300 293 1 / 12
1 / 8
1/4
755-400
400
385
Angle Driver • The body is zin alloy steel
• The arm is chrome vanadium alloy steel
• The chuck is aluminum alloy steel
• Magnetic 1/4" Hex size shank driver

759
• Heavy duty right angle bit holder
• This heavy duty 90 degree offset driver with 24 position
gripped stabilizer arm is designed for use with power
drivers 18-24 Volts
• Its head is shorter than 2.5" which is suitable to use in
limited space
• Locking magnetic chuck accepts any 1/4" hex drive
accessory such as twist drills, spade drills, step
drills, grinding stones, buffer pads, nut drivers and
screwdriver bits
• Durable all metal housing and steel gears with ball 90°
bearing construction
• Gripped stabilizer arm with 1 screwdriver bit storage
• It’s amazing capacity for up to 500 inch lbs with 2000 Pressure to change angle
RPM

KT NO. inch Overall length g
(mm)
759-140 1/4 140 305 12 / 48

393
