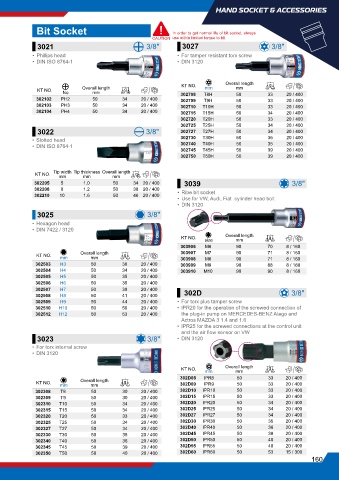

Page 201 - 蓝带金统立KINGTONY2025年样本

HAND SOCKET & ACCESSORIES

Bit Socket In order to get normal life of bit socket, always

CAUTION use within limited torque to bit.
3021 3/8" 3027 3/8"
• Phillips head • For tamper resistant torx screw
• DIN ISO 8764-1 • DIN 3120

g
KT NO.
mm
mm
KT NO. No. Overall length g 302708 T8H Overall length 33 20 / 400
mm
50
302102 PH2 50 34 20 / 400 302709 T9H 50 33 20 / 400
302103 PH3 50 34 20 / 400 302710 T10H 50 33 20 / 400
302104 PH4 50 34 20 / 400 302715 T15H 50 34 20 / 400
302720 T20H 50 33 20 / 400
302725 T25H 50 34 20 / 400
3022 3/8" 302727 T27H 50 34 20 / 400
• Slotted head 302730 T30H 50 35 20 / 400
• DIN ISO 8764-1 302740 T40H 50 35 20 / 400
302745 T45H 50 39 20 / 400
302750 T50H 50 39 20 / 400

KT NO. Tip width Tip thickness Overall length g
mm
mm
mm
302205 5 1.0 50 34 20 / 400 3039 3/8"
302208 8 1.2 50 38 20 / 400 • Ribe bit socket
302210 10 1.6 50 46 20 / 400
• Use for VW, Audi, Fiat cylinder head bolt
• DIN 3120
3025 3/8"
• Hexagon head
• DIN 7422 / 3120
KT NO. size Overall length g
mm
303906 M6 90 70 8 / 160
KT NO. mm Overall length g 303907 M7 90 71 8 / 160
mm
303908
71
90
8 / 160
M8
302503 H3 50 30 20 / 400 303909 M9 90 88 8 / 160
302504 H4 50 34 20 / 400 303910 M10 90 90 8 / 160
302505 H5 50 35 20 / 400
302506 H6 50 35 20 / 400
302507 H7 50 39 20 / 400 302D 3/8"
302508 H8 50 41 20 / 400
302509 H9 50 44 20 / 400 • For torx plus tamper screw
302510 H10 50 50 20 / 400 • IPR20 for the operation of the screwed connection of
302512 H12 50 53 20 / 400 the plug-in pump on MERCEDES-BENZ Atego and
Actros MAZDA 3 1.4 and 1.6
• IPR25 for the screwed connections at the control unit
and the air flow sensor on VW
3023 3/8" • DIN 3120
• For torx internal screw
• DIN 3120

KT NO. mm Overall length g
mm
302D08 IPR8 50 33 20 / 400
KT NO. mm Overall length g 302D09 IPR9 50 33 20 / 400
mm
302308 T8 50 30 20 / 400 302D10 IPR10 50 33 20 / 400
302309 T9 50 30 20 / 400 302D15 IPR15 50 33 20 / 400
302310 T10 50 34 20 / 400 302D20 IPR20 50 34 20 / 400
302315 T15 50 34 20 / 400 302D25 IPR25 50 34 20 / 400
302320 T20 50 33 20 / 400 302D27 IPR27 50 34 20 / 400
302325 T25 50 34 20 / 400 302D30 IPR30 50 35 20 / 400
302327 T27 50 34 20 / 400 302D40 IPR40 50 36 20 / 400
302330 T30 50 35 20 / 400 302D45 IPR45 50 38 20 / 400
302340 T40 50 36 20 / 400 302D50 IPR50 50 40 20 / 400
302345 T45 50 39 20 / 400 302D55 IPR55 50 48 20 / 400
302350 T50 50 40 20 / 400 302D60 IPR60 50 53 15 / 300
160
