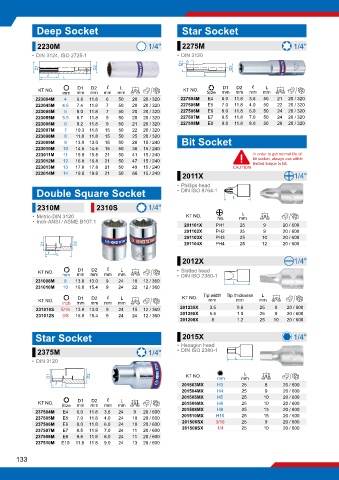

Page 174 - 蓝带金统立KINGTONY2025年样本

Deep Socket Star Socket

2230M 1/4'' 2275M 1/4''
• DIN 3124, ISO 2725-1 • DIN 3120
D1 l
D1 D2 D2
l L L

KT NO. D1 D2 ℓ L g KT NO. D1 D2 ℓ L g
mm mm mm mm mm Size mm mm mm mm
223004M 4 6.8 11.8 6 50 20 20 / 320 227504M E4 6.0 11.8 3.6 50 21 20 / 320
223045M 4.5 7.4 11.8 7 50 20 20 / 320 227505M E5 7.0 11.8 4.0 50 22 20 / 320
223005M 5 8.0 11.8 7 50 20 20 / 320 227506M E6 8.0 11.8 6.0 50 24 20 / 320
223055M 5.5 8.7 11.8 9 50 20 20 / 320 227507M E7 8.5 11.8 7.0 50 24 20 / 320
223006M 6 9.2 11.8 9 50 21 20 / 320 227508M E8 9.8 11.8 8.0 50 26 20 / 320
223007M 7 10.3 11.8 15 50 22 20 / 320
223008M 8 11.8 11.8 15 50 25 20 / 320
223009M 9 13.0 13.0 15 50 28 15 / 240 Bit Socket
223010M 10 14.5 14.5 15 50 36 15 / 240
223011M 11 15.8 15.8 21 50 41 15 / 240 In order to get normal life of
223012M 12 16.8 16.8 21 50 47 15 / 240 bit socket, always use within
limited torque to bit.
223013M 13 17.8 17.8 21 50 49 15 / 240 CAUTION
223014M 14 19.8 19.8 21 50 66 15 / 240 2011X 1/4"
• Phillips head
Double Square Socket • DIN ISO 8764-1
L
2310M 2310S 1/4''
L
• Metric-DIN 3120 KT NO. No. mm g
• Inch-ANSI / ASME B107.1
201101X PH1 25 9 20 / 600
201102X PH2 25 9 20 / 600
201103X PH3 25 10 20 / 600
D1 D2 201104X PH4 25 12 20 / 600
l L
2012X 1/4"
D1
D2
L
ℓ
KT NO. mm mm mm mm mm g • Slotted head
• DIN ISO 2380-1
231008M 8 13.8 13.0 9 24 16 12 / 360 L
231010M 10 16.8 15.4 9 24 22 12 / 360
L
D2
D1
L
ℓ
mm
mm
KT NO. inch mm mm mm mm g KT NO. Tip width Tip thickness mm g
231010S 5/16 13.8 13.0 9 24 15 12 / 360 201235X 3.5 0.6 25 8 20 / 600
231012S 3/8 16.8 15.4 9 24 24 12 / 360 201255X 5.5 1.0 25 9 20 / 600
201208X 8 1.2 25 10 20 / 600
Star Socket 2015X 1/4''
• Hexagon head
2375M 1/4'' • DIN ISO 2380-1
• DIN 3120 L
L
D1 D2 KT NO. mm mm g
l L 201503MX H3 25 8 20 / 600
201504MX H4 25 9 20 / 600
201505MX H5 25 10 20 / 600
KT NO. D1 D2 ℓ L g 201506MX H6 25 10 20 / 600
Size mm mm mm mm
237504M E4 6.0 11.8 3.6 24 9 20 / 600 201508MX H8 25 13 20 / 600
237505M E5 7.0 11.8 4.0 24 10 20 / 600 201510MX H10 25 15 20 / 600
237506M E6 8.0 11.8 6.0 24 10 20 / 600 201506SX 3/16 25 9 20 / 600
237507M E7 8.5 11.8 7.0 24 11 20 / 600 201508SX 1/4 25 10 20 / 600
237508M E8 9.8 11.8 8.0 24 11 20 / 600
237510M E10 11.8 11.8 9.0 24 13 20 / 600

133
