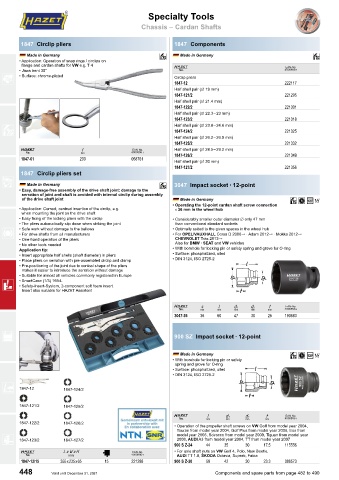

Page 449 - HAZET英文2021

Specialty Tools Specialty Tools

Chassis – Cardan Shafts Chassis – Cardan Shafts

1847 Circlip pliers 1847 Components

Made in Germany F Made in Germany F
• Application: Operation of snap rings / circlips on
flange and cardan shafts for VW e.g. T 4 1 4
• Jaws bent 30°
G • Surface: chrome-plated Circlip pliers 222117
1847-12
Half shell pair (x 19 mm)
1847-121/2 221295
Half shell pair (x 21.4 mm)
1847-122/2 221301
Half shell pair (x 22.3 – 23 mm)
1847-123/2 221318
F Half shell pair (x 23.8 – 24.6 mm) 221325
1847-124/2
Half shell pair (x 26.2 – 26.9 mm)
1847-125/2 221332
1 K 4 Half shell pair (x 28.5 – 29.2 mm)
1847-61 200 058761 1847-126/2 221349
Half shell pair (x 30 mm)
1847-127/2 221356
1847 Circlip pliers set
D Made in Germany F 3047 Impact socket ∙ 12-point

• Easy, damage-free assembly of the drive shaft joint: damage to the
serration of joint and shaft is avoided with internal circlip during assembly
of the drive shaft joint Made in Germany F% 8
• Operating the 12-point cardan shaft screw connection
• Application: Correct, centred insertion of the circlip, e.g. Ä 36 mm in the wheel hub
when mounting the joint on the drive shaft
• Easy fixing of the locking pliers with the circlip • Considerably smaller outer diameter x only 47 mm
• The pliers automatically slip down when striking the joint than conventional standard sockets
R • Safe work without damage to the bellows • Optimally suited to the given spaces in the wheel hub
• For OPEL/VAUXHALL Corsa D 2006→ ∙ Adam 2012→ ∙ Mokka 2012→
• For drive shafts from all manufacturers
CHEVROLET Trax 2013→
• One-hand operation of the pliers
• No other tools needed Also for BMW ∙ SEAT and VW vehicles
Application tip: • With borehole for locking pin or safety spring and grove for O-ring
• Insert appropriate half shells (shaft diameter) in pliers • Surface: phosphatized, oiled
• Place pliers on serration with pre-assembled circlip and clamp • DIN 3124, ISO 2725-2
• Pre-positioning of the joint due to conical shape of the pliers
makes it easier to introduce the serration without damage
• Suitable for almost all vehicles commonly registered in Europe
C • SmartCase (1/3) 165-L
• Safety-Insert-System, 2-component soft foam insert.
Insert also suitable for HAZET Assistent
1 S K G H c 4
3047-36 36 60 47 30 25 190683

O 900 SZ Impact socket ∙ 12-point

Made in Germany F% 8
• With borehole for locking pin or safety
spring and grove for O-ring
• Surface: phosphatized, oiled
• DIN 3124, ISO 2725-2
A 1847-12 1847-124/2

1847-121/2 1847-125/2
1 K G H c 4
1847-122/2 1847-126/2
• Operation of the propeller shaft screws on VW Golf from model year 2004,
Touran from model year 2004, Golf Plus from model year 2006, Eos from
model year 2006, Scirocco from model year 2009, Tiguan from model year
U 1847-123/2 1847-127/2 900 S Z-24 44 35 30 17.5 115556
2008, AUDI A3 from model year 2004, TT from model year 2007
1 L x W x H è 4 • For axle shaft nuts on VW Golf 4, Polo, New Beetle,
AUDI TT 1.8, ŠKODA Octavia, Superb, Fabia
mm
1847-12/15 355 x 235 x 65 15 221288 900 S Z-30 50 42 30 23.3 086573
448 Valid until December 31, 2021 Components and spare parts from page 482 to 490
