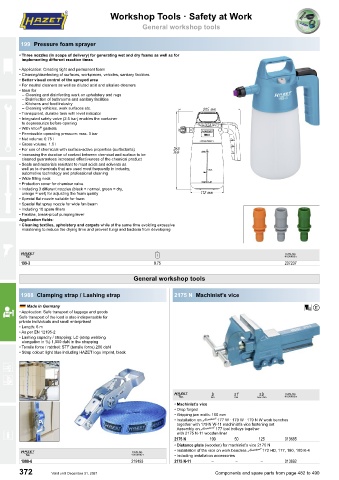

Page 373 - HAZET英文2021

Workshop Tools · Safety at Work Workshop Tools · Safety at Work

General workshop tools Safety at work

199 Pressure foam sprayer

• Three nozzles (in scope of delivery) for generating wet and dry foams as well as for
implementing different reaction times
• Application: Creating tight and permanent foam
• Cleaning/disinfecting of surfaces, workpieces, vehicles, sanitary facilities
• Better visual control of the sprayed area
• For neutral cleaners as well as diluted acid and alkaline cleaners
• Ideal for
– Cleaning and disinfecting work on upholstery and rugs
– Disinfection of bathrooms and sanitary facilities
– Kitchens and food industry
– Cleaning vehicles, work surfaces etc.
• Transparent, durable tank with level indicator
• Integrated safety valve (2.5 bar) enables the container
to depressurize before opening
• With Viton gaskets
®
• Permissible operating pressure: max. 3 bar
• Net volume: 0.75 l
• Gross volume: 1.5 l
• For use of chemicals with surface-active properties (surfactants)
• Increasing the duration of contact between chemical and surface to be
cleaned guarantees increased effectiveness of the chemical product
• Seals and materials resistant to most acids and solvents as
well as to chemicals that are used most frequently in industry,
automotive technology and professional cleaning
• Wide filling neck
• Protection cover for chamber valve
• Including 3 different nozzles (black = normal, green = dry,
orange = wet) for adjusting the foam quality
• Special flat nozzle suitable for foam
• Special flat spray nozzle for wide fan beam
• Including 10 spare filters
• Flexible, break-proof pumping lever
Application fields:
• Cleaning textiles, upholstery and carpets while at the same time avoiding excessive
moistening to reduce the drying time and prevent fungi and bacteria from developing

1 ] 4

199-3 0.75 207237

General workshop tools

1988 Clamping strap / Lashing strap 2175 N Machinist’s vice
Made in Germany S/
• Application: Safe transport of luggage and goods
Safe transport of the load is also indispensable for
private individuals and small enterprises!
• Length: 6 m
• As per EN 12195-2
• Lashing capacity / strapping: LC (strap webbing
elongation in %) 1,000 daN in the strapping
• Tensile force / ratchet: STF (tensile force) 200 daN
• Strap colour: light blue including HAZET logo imprint, black

1 5 a Y 4

• Machinist’s vice
• Drop forged
• Gripping jaw width: 100 mm
• Installation on i 177 W ∙ 179 W ∙ 179 N W work benches
together with 179 N W-11 machinist’s vice fastening set
Assembly on i 177 tool trolleys together
with 2175 N-11 wooden liner
2175 N 100 50 125 013685
• Distance plate (wooden) for machinist’s vice 2175 N
1 4 • Installation of the vice on work benches i 172 HD, 177, 180, 180 K-4
• Including installation accessories
1988-6 219193 2175 N-11 – – – 013692
372 Valid until December 31, 2021 Components and spare parts from page 482 to 490
