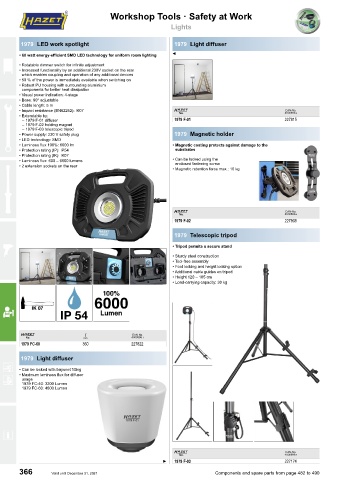

Page 367 - HAZET英文2021

Workshop Tools · Safety at Work Workshop Tools · Safety at Work

Lights Floor mats / Car covers

1979 LED work spotlight 1979 Light diffuser

• 60 watt energy-efficient SMD LED technology for uniform room lighting C
• Rotatable dimmer switch for infinite adjustment
• Increased functionality by an additional 230V socket on the rear
which enables coupling and operation of any additional devices
• 50 % of the power is immediately available when switching on
• Robust PU housing with surrounding aluminium
components for better heat dissipation
• Visual power indication: 4-stage
• Base: 90° adjustable
• Cable length: 5 m
• Impact resistance (EN62262): IK07 1 4
• Extendable by:
– 1979 F-01 diffuser 1979 F-01 227815
– 1979 F-02 holding magnet
– 1979 F-03 telescopic tripod
• Power supply: 230 V safety plug 1979 Magnetic holder
• LED technology: SMD
• Luminous flux 100%: 6000 lm • Magnetic coating protects against damage to the
• Protection rating (IP): IP54 substrates
• Protection rating (IK): IK07
• Luminous flux: 600 – 6000 lumens • Can be locked using the
• 2 extension sockets on the rear enclosed fastening screw
• Magnetic retention force max.: 10 kg

1 4

1979 F-02 227808

1979 Telescopic tripod
• Tripod permits a secure stand

• Sturdy steel construction
• Tool-free assembly
• Foot locking and height locking option
• Additional cable guides on tripod
• Height 120 – 185 cm
• Load-carrying capacity: 30 kg

1 K 4

1979 FC-60 360 227822

1979 Light diffuser
• Can be locked with bayonet fitting
• Maximum luminous flux for diffusor
usage
1979 FC-40: 3200 Lumen
1979 FC-60: 4800 Lumen

1 4
B 1979 F-03 227174
366 Valid until December 31, 2021 Components and spare parts from page 482 to 490
