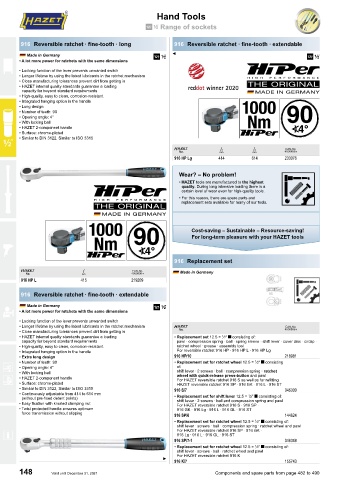

Page 149 - HAZET英文2021

Hand Tools Hand Tools

3 Range of sockets 3 Range of sockets

916 Reversible ratchet ∙ fine-tooth ∙ long 916 Reversible ratchet ∙ fine-tooth ∙ extendable

Made in Germany 3 C 3
• A lot more power for ratchets with the same dimensions
• Locking function of the lever prevents unwanted switch
• Longer lifetime by using the latest lubricants in the ratchet mechanism
• Close manufacturing tolerances prevent dirt from getting in
• HAZET internal quality standards guarantee a loading
capacity far beyond standard requirements
• High-quality, easy to clean, corrosion-resistant
• Integrated hanging option in the handle
• Long design
• Number of teeth: 90
• Opening angle: 4°
• With locking ball
• HAZET 2-component handle
• Surface: chrome-plated
• Similar to DIN 3122, Similar to ISO 3315
1 ⁄2
1 M N 4
916 HP Lg 414 614 233076

Wear? – No problem!
• HAZET tools are manufactured to the highest
quality. During long intensive loading there is a
certain level of wear even for high-quality tools.
• For this reason, there are spare parts and
replacement sets available for many of our tools.

Cost-saving – Sustainable – Resource-saving!
For long-term pleasure with your HAZET tools

916 Replacement set
1 K 4 Made in Germany

916 HP L 415 219209

916 Reversible ratchet ∙ fine-tooth ∙ extendable
Made in Germany 3
• A lot more power for ratchets with the same dimensions
• Locking function of the lever prevents unwanted switch
• Longer lifetime by using the latest lubricants in the ratchet mechanism 1 4
• Close manufacturing tolerances prevent dirt from getting in
• HAZET internal quality standards guarantee a loading • Replacement set 12.5 = ⁄2″ i consisting of:
1
capacity far beyond standard requirements pawl ∙ compression spring ∙ ball ∙ spring sleeve ∙ shift lever ∙ cover disc ∙ circlip ∙
• High-quality, easy to clean, corrosion-resistant ratchet wheel ∙ grease ∙ assembly tool
• Integrated hanging option in the handle For reversible ratchet 916 HP ∙ 916 HP L ∙ 916 HP Lg
• Extra long design 916 HP/10 218981
• Number of teeth: 90 • Replacement set for ratchet wheel 12.5 = ⁄2″ i consisting
1
• Opening angle: 4° of:
• With locking ball shift lever ∙ 2 screws ∙ ball ∙ compression spring ∙ ratchet
• HAZET 2-component handle wheel with quick-release press-button and pawl
For HAZET reversible ratchet 916 S as well as for refitting
• Surface: chrome-plated HAZET reversible ratchet 916 SP ∙ 916 GK ∙ 916 L ∙ 916 ST
• Similar to DIN 3122, Similar to ISO 3315 916 S/7 046300
• Continuously adjustable from 414 to 614 mm • Replacement set for shift lever 12.5 = ⁄2″ i consisting of:
1
(without pre-fixed detent points) shift lever ∙ 2 screws ∙ ball and compression spring and pawl
• Easy fixation with knurled clamping nut For HAZET reversible ratchet 916 S ∙ 916 SP ∙
• Twist protected handle ensures optimum 916 GK ∙ 916 Lg ∙ 916 L ∙ 916 GL ∙ 916 ST
force transmission without slipping 916 SP/6 144624
• Replacement set for ratchet wheel 12.5 = ⁄2" i consisting of:
1
shift lever ∙ screws ∙ ball ∙ compression spring ∙ ratchet wheel and pawl
For HAZET reversible ratchet 916 SP ∙ 916 GK ∙
916 Lg ∙ 916 L ∙ 916 GL ∙ 916 ST
916 SP/7-1 046348
• Replacement set for ratchet wheel 12.5 = ⁄2" i consisting of:
1
shift lever ∙ screws ∙ ball ∙ ratchet wheel and pawl
For HAZET reversible ratchet 916 K
B
916 K/7 155743
148 Valid until December 31, 2021 Components and spare parts from page 482 to 490
