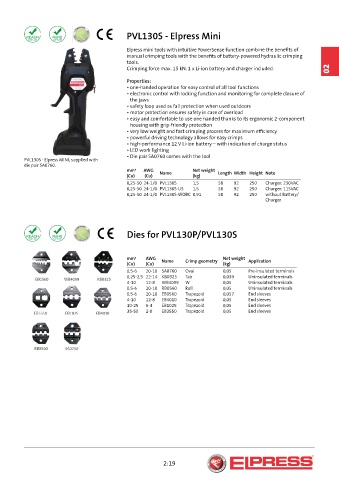

PVL130S - Elpress Mini

Elpress mini tools with intuitive PowerSense function combine the benefits of
manual crimping tools with the benefits of battery-powered hydraulic crimping
tools.
Crimping force max. 15 kN. 1 x Li-ion battery and charger included. 02

Properties:
• one-handed operation for easy control of all tool functions
• electronic control with locking function and monitoring for complete closure of
the jaws
• safety loop used as fall protection when used outdoors
• motor protection ensures safety in case of overload
• easy and comfortable to use one handed thanks to its ergonomic 2-component
housing with grip-friendly protection
• very low weight and fast crimping process for maximum efficiency
• powerful driving technology allows for easy crimps
• high-performance 12 V Li-Ion battery – with indication of charge status
• LED work lighting
• Die pair SA0760 comes with the tool
PVL130S - Elpress MINI, supplied with
die pair SA0760.
mm² AWG Name Net weight Length Width Height Note
(Cu) (Cu) (kg)
0,25-50 24-1/0 PVL130S 1,5 58 92 250 Charger: 230VAC
0,25-50 24-1/0 PVL130S-US 1,5 58 92 250 Charger: 115VAC
0,25-50 24-1/0 PVL130S-WOBC 0,91 58 92 250 without Battery/
Charger

Dies for PVL130P/PVL130S

mm² AWG Net weight
(Cu) (Cu) Name Crimp geometry (kg) Application
0,5-6 20-10 SA0760 Oval 0,05 Pre-insulated terminals
0,25-2,5 22-14 KB0325 Tab 0,039 Uninsulated terminals
4-10 12-8 WB4099 W 0,05 Uninsulated terminals
0,5-6 20-10 RB0560 Roll 0,05 Uninsulated terminals
0,5-6 20-10 EB0560 Trapezoid 0,057 End sleeves
4-10 12-8 EB4010 Trapezoid 0,05 End sleeves
10-25 6-4 EB1025 Trapezoid 0,05 End sleeves
35-50 2-0 EB3550 Trapezoid 0,05 End sleeves
