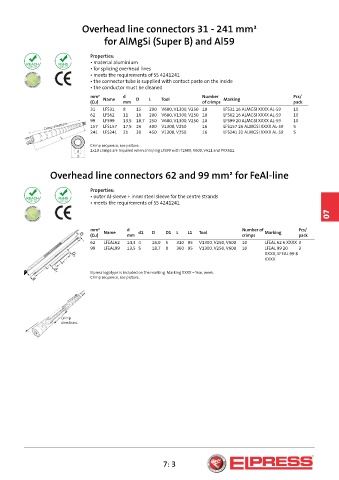

Overhead line connectors 31 - 241 mm²

for AlMgSi (Super B) and Al59

Properties:
• material aluminium
• for splicing overhead lines
• meets the requirements of SS 4241241
• the connector tube is supplied with contact paste on the inside
• the conductor must be cleaned

mm² Name d D L Tool Number Marking Pcs/
(Cu) mm of crimps pack
31 LFS31 8 15 200 V600, V1300, V250 10 LFS31 16 ALMGSI XXXX AL-59 10
62 LFS62 11 16 200 V600, V1300, V250 10 LFS62 16 ALMGSI XXXX AL-59 10
99 LFS99 13,5 18,7 250 V600, V1300, V250 10 LFS99 20 ALMGSI XXXX AL-59 10
157 LFS157 17,5 24 400 V1300, V250 16 LFS157 26 ALMGSI XXXX AL-59 5
241 LFS241 21 30 450 V1300, V250 16 LFS241 32 ALMGSI XXXX AL-59 5

Crimp sequence, see picture.
2x10 crimps are required when crimping LFS99 with T2600, V600, V611 and PVX611.

Overhead line connectors 62 and 99 mm² for FeAl-line

Properties:
• outer Al-sleeve + inner steel sleeve for the centre strands
• meets the requirements of SS 4241241

07

mm² Name d d1 D D1 L L1 Tool Number of Marking Pcs/
(Cu) mm crimps pack
62 LFEAL62 14,3 4 16,0 6 310 95 V1300, V250, V600 10 LFEAL 62 6 XXXX 3
99 LFEAL99 13,5 5 18,7 8 360 95 V1300, V250, V600 10 LFEAL 99 20 3
XXXX, LFEAL 99 8
XXXX

Elpress logotype is included on the marking. Marking XXXX = Year, week.
Crimp sequence, see picture.
