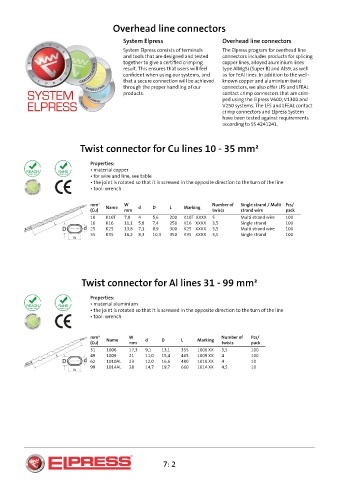

Overhead line connectors

System Elpress Overhead line connectors

System Elpress consists of terminals The Elpress program for overhead line
and tools that are designed and tested connectors includes products for splicing
together to give a certified crimping copper lines, alloyed aluminium lines
result. This ensures that users will feel type AlMgSi (Super B) and Al59, as well
confident when using our systems, and as for FeAl lines. In addition to the well-
that a secure connection will be achieved known copper and aluminium twist
through the proper handling of our connectors, we also offer LFS and LFEAL
products. contact crimp connectors that are crim-
ped using the Elpress V600, V1300 and
V250 systems. The LFS and LFEAL contact
crimp connectors and Elpress System
have been tested against requirements
according to SS 4241241.

Twist connector for Cu lines 10 - 35 mm²

Properties:
• material copper
• for wire and line, see table
• the joint is rotated so that it is screwed in the opposite direction to the turn of the line
• tool: wrench

mm² Name W d D L Marking Number of Single strand / Multi Pcs/
(Cu) mm twists strand wire pack
10 K10T 7,8 4 5,6 200 K10T XXXX 5 Multi strand wire 100
16 K16 11,1 5,8 7,4 250 K16 XXXX 3,5 Single strand 100
25 K25 13,8 7,1 8,9 300 K25 XXXX 3,5 Multi strand wire 100
35 K35 16,2 8,3 10,3 350 K35 XXXX 3,5 Single strand 100

Twist connector for Al lines 31 - 99 mm²

Properties:
• material aluminium
• the joint is rotated so that it is screwed in the opposite direction to the turn of the line
• tool: wrench

mm² Name W d D L Marking Number of Pcs/
(Cu) mm twists pack
31 1006 17,3 9,1 13,1 355 1006 XX 3,5 100
49 1009 21 11,0 15,4 465 1009 XX 4 100
62 1010AL 23 12,0 16,6 480 1010 XX 4 10
99 1014AL 28 14,7 19,7 660 1014 XX 4,5 10

7: 2
