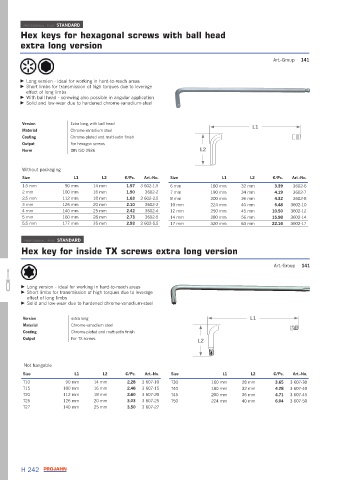

Hex keys for hexagonal screws with ball head
extra long version
Art.-Group 141

▶ Long version - ideal for working in hard-to-reach areas
▶ Short limbs for transmission of high torques due to leverage
effect of long limbs
▶ With ball head - screwing also possible in angular application
▶ Solid and low-wear due to hardened chrome-vanadium-steel
Version Extra long, with ball head L1
Material Chrome-vanadium steel
Coating Chrome-plated and matt-satin finish
Output For hexagon screws
Norm DIN ISO 2936 L2

Without packaging
Size L1 L2 €/Pc. Art.-No. Size L1 L2 €/Pc. Art.-No.
1.5 mm 90 mm 14 mm 1.57 3 602-1.5 6 mm 180 mm 32 mm 3.39 3602-6
2 mm 100 mm 16 mm 1.90 3602-2 7 mm 190 mm 34 mm 4.19 3602-7
2.5 mm 112 mm 18 mm 1.63 3 602-2.5 8 mm 200 mm 36 mm 4.32 3602-8
3 mm 126 mm 20 mm 2.10 3602-3 10 mm 224 mm 40 mm 5.48 3602-10
4 mm 140 mm 25 mm 2.42 3602-4 12 mm 250 mm 45 mm 10.50 3602-12
5 mm 160 mm 28 mm 2.73 3602-5 14 mm 280 mm 56 mm 15.98 3602-14
5.5 mm 177 mm 35 mm 2.93 3 602-5.5 17 mm 320 mm 63 mm 22.16 3602-17

PLUS
STANDARD
STANDARD
PROFESSIONAL

PLUS

PROFESSIONAL PLUS STANDARD
PROFESSIONAL
Hex key for inside TX screws extra long version
Art.-Group 141

▶ Long version - ideal for working in hard-to-reach areas
▶ Short limbs for transmission of high torques due to leverage
effect of long limbs
▶ Solid and low-wear due to hardened chrome-vanadium-steel
Version extra long L1
Material Chrome-vanadium steel
Coating Chrome-plated and matt-satin finish
Output For TX screws
L2

Not hangable
Size L1 L2 €/Pc. Art.-No. Size L1 L2 €/Pc. Art.-No.
T10 90 mm 14 mm 2.28 3 607-10 T30 160 mm 28 mm 3.65 3 607-30
T15 100 mm 16 mm 2.46 3 607-15 T40 180 mm 32 mm 4.28 3 607-40
T20 112 mm 18 mm 2.60 3 607-20 T45 200 mm 36 mm 4.71 3 607-45
T25 126 mm 20 mm 3.03 3 607-25 T50 224 mm 40 mm 6.04 3 607-50
T27 140 mm 25 mm 3.50 3 607-27
