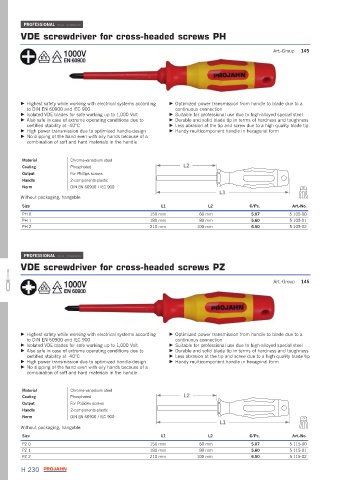

Page 232 - 德国Projahn2022

PROFESSIONAL PLUS STANDARD
VDE screwdriver for cross-headed screws PH

Art.-Group 145

▶ Highest safety while working with electrical systems according ▶ Optimized power transmission from handle to blade due to a
to DIN EN 60900 and IEC 900 continuous connection
▶ Isolated VDE blades for safe working up to 1,000 Volt ▶ Suitable for professional use due to high-alloyed special steel
▶ Also safe in case of extreme operating conditions due to ▶ Durable and solid blade tip in terms of hardness and toughness
certified stability at -40°C ▶ Less abrasion at the tip and screw due to a high quality blade tip
▶ High power transmission due to optimized handle-design ▶ Handy multicomponent handle in hexagonal form
▶ No slipping of the hand even with oily hands because of a
combination of soft and hard materials in the handle

Material Chrome-vanadium steel
Coating Phosphated L2
Output For Phillips screws
Handle 2-components-plastic
Norm DIN EN 60900 / IEC 900
L1
Without packaging, hangable
Size L1 L2 €/Pc. Art.-No.
PH 0 150 mm 60 mm 5.07 5 105-00
PH 1 180 mm 80 mm 5.60 5 105-01
PH 2 210 mm 100 mm 6.50 5 105-02

PROFESSIONAL PLUS STANDARD
VDE screwdriver for cross-headed screws PZ

Art.-Group 145

▶ Highest safety while working with electrical systems according ▶ Optimized power transmission from handle to blade due to a
to DIN EN 60900 and IEC 900 continuous connection
▶ Isolated VDE blades for safe working up to 1,000 Volt ▶ Suitable for professional use due to high-alloyed special steel
▶ Also safe in case of extreme operating conditions due to ▶ Durable and solid blade tip in terms of hardness and toughness
certified stability at -40°C ▶ Less abrasion at the tip and screw due to a high quality blade tip
▶ High power transmission due to optimized handle-design ▶ Handy multicomponent handle in hexagonal form
▶ No slipping of the hand even with oily hands because of a
combination of soft and hard materials in the handle

Material Chrome-vanadium steel
Coating Phosphated L2
Output For Pozidriv screws
Handle 2-components-plastic
Norm DIN EN 60900 / IEC 900
L1
Without packaging, hangable
Size L1 L2 €/Pc. Art.-No.
PZ 0 150 mm 60 mm 5.07 5 115-00
PZ 1 180 mm 80 mm 5.60 5 115-01
PZ 2 210 mm 100 mm 6.50 5 115-02
H 230
