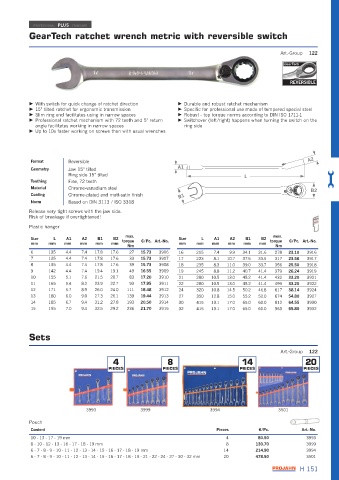

Page 153 - 德国Projahn2022

PLUS

STANDARD
PROFESSIONAL PLUS STANDARD
PROFESSIONAL

GearTech ratchet wrench metric with reversible switch
Art.-Group 122
GearTech

REVERSIBLE

▶ With switch for quick change of ratchet direction ▶ Durable and robust ratchet mechanism
▶ 15° tilted ratchet for ergonomic transmission ▶ Specific for professional use made of tempered special steel
▶ Slim ring end facilitates using in narrow spaces ▶ Robust - top torque norms according to DIN ISO 1711-1
▶ Professional ratchet mechanism with 72 teeth and 5° return ▶ Switchover (left/right) happens when turning the switch on the
angle facilitates working in narrow spaces ring side
▶ Up to 10x faster working on screws than with usual wrenches

A2
Format Reversible
Geometry Jaw 15° tilted A1
Ring side 15° tilted L
Toothing Fine, 72 teeth
Material Chrome-vanadium steel B2
Coating Chrome-plated and matt-satin finish B1
Norm Based on DIN 3113 / ISO 3318
Release very tight screws with the jaw side.
Risk of breakage if overtightened!
Plastic hanger
max. max.
Size L A1 A2 B1 B2 torque €/Pc. Art.-No. Size L A1 A2 B1 B2 torque €/Pc. Art.-No.
mm mm mm mm mm mm mm mm mm mm mm mm
Nm Nm
6 135 4.4 7.4 17.8 17.6 27 15.73 3906 16 215 7.4 9.9 34.1 31.6 278 23.10 3916
7 135 4.4 7.4 17.8 17.6 33 15.73 3907 17 223 8.1 10.7 37.5 33.5 317 23.56 3917
8 135 4.4 7.4 17.8 17.6 39 15.73 3908 18 235 8.3 11.0 39.0 33.7 356 25.50 3918
9 142 4.4 7.4 19.4 19.1 49 16.55 3909 19 245 8.8 11.2 40.7 41.4 379 26.24 3919
10 155 5.1 7.6 21.5 20.7 83 17.20 3910 21 280 10.5 13.0 45.2 41.4 432 33.20 3921
11 165 5.4 8.2 23.9 22.7 93 17.95 3911 22 280 10.5 13.0 45.2 41.4 499 33.20 3922
12 171 5.7 8.9 26.0 24.0 111 18.48 3912 24 320 10.8 14.5 50.2 46.8 617 38.14 3924
13 180 6.0 9.0 27.3 26.1 139 19.44 3913 27 350 12.8 15.0 55.2 52.0 674 54.80 3927
14 185 6.7 9.4 31.2 27.8 193 20.50 3914 30 415 13.1 17.0 65.0 60.0 812 64.55 3930
15 195 7.0 9.4 32.5 29.2 236 21.70 3915 32 415 13.1 17.0 65.0 60.0 963 65.80 3932

Sets

Art.-Group 122
4 8 14 20
PIECES PIECES PIECES PIECES

3993 3999 3994 3501

Pouch
Content Pieces €/Pc. Art.-No.
10 - 13 - 17 - 19 mm 4 80.50 3993
8 - 10 - 12 - 13 - 16 - 17 - 18 - 19 mm 8 130.70 3999
6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 mm 14 214.90 3994
6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 21 - 22 - 24 - 27 - 30 - 32 mm 20 478.50 3501
