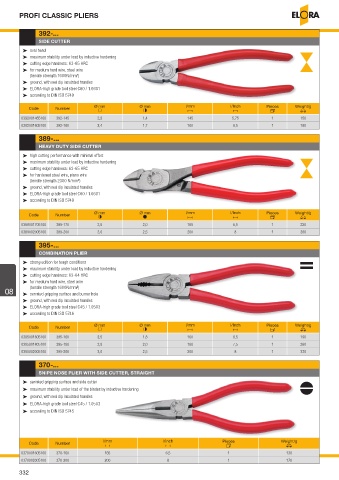

Page 332 - ELORA-Tool_Catalogue_E95

PROFI CLASSIC PLIERS

392-...
SIDE CUTTER

³ oval head
³ maximum stability under load by inductive hardening
³ cutting edge hardness: 63-65 HRC
³ for medium hard wire, steel wire
(tensile strength 1600N/mm²)
³ ground, with red dip insulated handles
³ ELORA-high grade tool steel C60 / 1.0601
³ according to DIN ISO 5749

Code Number Ø mm Ø mm l/mm l/Inch Pieces Weight/g
g h T T U V
0392001455100 392-145 2,2 1,4 145 5,75 1 150
0392001605100 392-160 2,4 1,7 160 6,5 1 180
389-...

HEAVY DUTY SIDE CUTTER
³ high cutting performance with minimal effort
³ maximum stability under load by inductive hardening
³ cutting edge hardness: 63-65 HRC
³ for hardened steel wire, piano wire
(tensile strength 2300 N/mm²)
³ ground, with red dip insulated handles
³ ELORA-high grade tool steel C60 / 1.0601
³ according to DIN ISO 5749

Code Number Ø mm Ø mm l/mm l/Inch Pieces Weight/g
h i T T U V
0389001705100 389-170 2,5 2,0 165 6,5 1 220
0389002005100 389-200 3,0 2,5 200 8 1 260

395-...
COMBINATION PLIER
³ strong edition for tough conditions
³ maximum stability under load by inductive hardening
³ cutting edge hardness: 63-64 HRC
³ for medium hard wire, steel wire
(tensile strength 1600N/mm²)
08 ³ serrated gripping surface and burner hole
³ ground, with red dip insulated handles
³ ELORA-high grade tool steel C45 / 1.0503
³ according to DIN ISO 5746

Code Number Ø mm Ø mm l/mm l/Inch Pieces Weight/g
g h T T U V
0395001605100 395-160 2,5 1,8 160 6,5 1 190
0395001805100 395-180 2,8 2,0 180 7,5 1 260
0395002005100 395-200 3,0 2,5 200 8 1 330

370-...
SNIPE NOSE PLIER WITH SIDE CUTTER, STRAIGHT
³ serrated gripping surface and side cutter
³ maximum stability under load of the blades by inductive hardening
³ ground, with red dip insulated handles
³ ELORA-high grade tool steel C45 / 1.0503
³ according to DIN ISO 5745

Code Number l/mm l/Inch Pieces Weight/g
T T U V
0370001605100 370-160 165 6,5 1 130
0370002005100 370-200 200 8 1 170

332
