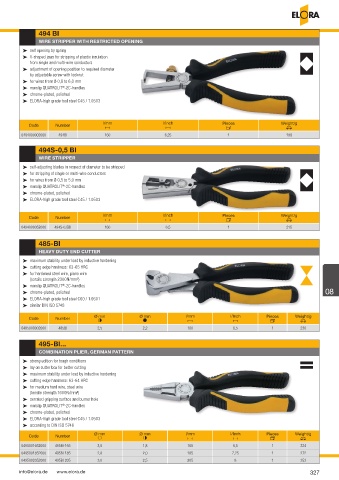

Page 327 - ELORA-Tool_Catalogue_E95

494 BI
WIRE STRIPPER WITH RESTRICTED OPENING

³ self opening by spring
³ V-shaped jaws for stripping of plastic insulation
from single and multi-wire conductors
³ adjustment of opening position to required diameter
by adjustable screw with locknut
³ for wires from Ø 0,8 to 6,0 mm
³ nonslip QUATROLIT -2C-handles
®
³ chrome-plated, polished
³ ELORA-high grade tool steel C45 / 1.0503

Code Number l/mm l/Inch Pieces Weight/g
T T U V
0494000002000 494BI 160 6,25 1 199

494S-0,5 BI
WIRE STRIPPER
³ self-adjusting blades in respect of diameter to be stripped
³ for stripping of single or multi-wire conductors
³ for wires from Ø 0,5 to 5,0 mm
³ nonslip QUATROLIT -2C-handles
®
³ chrome-plated, polished
³ ELORA-high grade tool steel C45 / 1.0503

Code Number l/mm l/Inch Pieces Weight/g
T T U V
0494000052000 494S-0,5BI 160 6,5 1 215

485-BI
HEAVY DUTY END CUTTER

³ maximum stability under load by inductive hardening
³ cutting edge hardness: 63-65 HRC
³ for hardened steel wire, piano wire
(tensile strength 2300N/mm²)
³ nonslip QUATROLIT -2C-handles
®
³ chrome-plated, polished 08
³ ELORA-high grade tool steel C60 / 1.0601
³ similar DIN ISO 5748

Code Number Ø mm Ø mm l/mm l/Inch Pieces Weight/g
h i T T U V
0485000002000 485BI 2,5 2,2 160 6,5 1 230

495-BI...
COMBINATION PLIER, GERMAN PATTERN

³ strong edition for tough conditions
³ lay on cutter box for better cutting
³ maximum stability under load by inductive hardening
³ cutting edge hardness: 63-64 HRC
³ for medium hard wire, steel wire
(tensile strength 1600N/mm²)
³ serrated gripping surface and burner hole
®
³ nonslip QUATROLIT -2C-handles
³ chrome-plated, polished
³ ELORA-high grade tool steel C45 / 1.0503
³ according to DIN ISO 5746
Code Number Ø mm Ø mm l/mm l/Inch Pieces Weight/g
g h T T U V
0495001652000 495BI-165 2,5 1,8 165 6,5 1 224
0495001852000 495BI-185 2,8 2,0 185 7,25 1 272
0495002052000 495BI-205 3,0 2,5 205 8 1 353

info@elora.de www.elora.de 327
