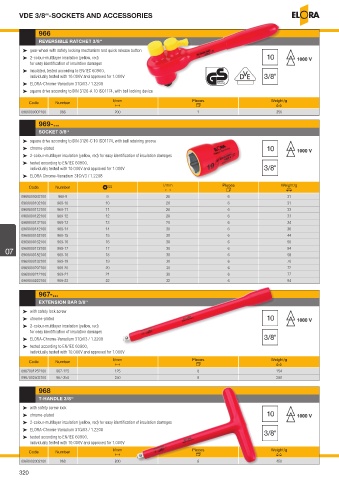

Page 320 - ELORA-Tool_Catalogue_E95

VDE 3/8‘‘-SOCKETS AND ACCESSORIES

966
REVERSIBLE RATCHET 3/8‘‘

³ gear-wheel with safety locking mechanism and quick release button
³ 2-colour-multilayer insulation (yellow, red) 10
for easy identification of insulation damages
³ insulated, tested according to EN/IEC 60900,
individually tested with 10.000V and approved for 1.000V 3/8"
³ ELORA-Chrome-Vanadium 31CrV3 / 1.2208
³ square drive according to DIN 3120-A 10 ISO1174, with ball locking device
Code Number l/mm Pieces Weight/g
T U V
0966000002100 966 200 1 356
969-...
SOCKET 3/8‘‘
³ square drive according to DIN 3120-C 10 ISO1174, with ball retaining groove
³ chrome-plated 10
³ 2-colour-multilayer insulation (yellow, red) for easy identification of insulation damages
³ tested according to EN/IEC 60900,
individually tested with 10.000V and approved for 1.000V 3/8"
³ ELORA Chrome-Vanadium 31CrV3 / 1.2208
Code Number w l/mm Pieces Weight/g
T
V
U
0969000092100 969-9 9 28 6 31
0969000102100 969-10 10 28 6 31
0969000112100 969-11 11 28 6 33
0969000122100 969-12 12 28 6 33
0969000132100 969-13 13 28 6 34
0969000142100 969-14 14 30 6 36
0969000152100 969-15 15 30 6 44
0969000162100 969-16 16 30 6 50
07 0969000172100 969-17 17 30 6 6 54
0969000182100
30
969-18
58
18
0969000192100 969-19 19 30 6 70
0969000202100 969-20 20 30 6 72
0969000212100 969-21 21 30 6 77
0969000222100 969-22 22 32 6 94
967-...
EXTENSION BAR 3/8‘‘
³ with safety lock screw
³ chrome-plated 10
³ 2-colour-multilayer insulation (yellow, red)
for easy identification of insulation damages
³ ELORA-Chrome-Vanadium 31CrV3 / 1.2208 3/8"
³ tested according to EN/IEC 60900,
individually tested with 10.000V and approved for 1.000V

Code Number l/mm Pieces Weight/g
T U V
0967001252100 967-125 125 6 154
0967002502100 967-250 250 6 280

968
T-HANDLE 3/8‘‘
³ with safety screw lock
³ chrome-plated 10
³ 2-colour-multilayer insulation (yellow, red) for easy identification of insulation damages
³ ELORA-Chrome-Vanadium 31CrV3 / 1.2208 3/8"
³ tested according to EN/IEC 60900,
individually tested with 10.000V and approved for 1.000V
Code Number l/mm Pieces Weight/g
T U V
0968002002100 968 200 6 450
320
