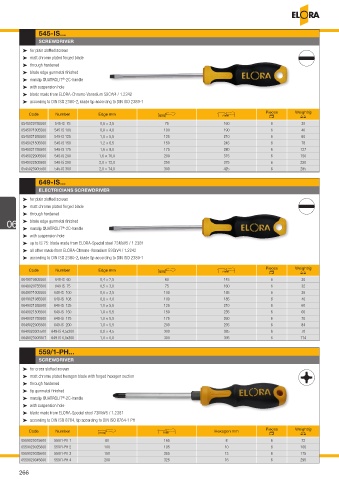

Page 266 - ELORA-Tool_Catalogue_E95

545-IS...
SCREWDRIVER

³ for plain slotted screws
³ matt chrome plated forged blade
³ through hardened
³ blade edge gunmetal finished
®
³ nonslip QUATROLIT -2C-handle
³ with suspension hole
³ blade made from ELORA-Chrome-Vanadium 59CrV4 / 1.2242
³ according to DIN ISO 2380-2, blade tip according to DIN ISO 2380-1
  Pieces Weight/g
Code Number Edge mm  
0545020755500 545-IS 75 0,6 × 3,5 75 160 6 38
0545021005500 545-IS 100 0,8 × 4,0 100 190 6 40
0545021255500 545-IS 125 1,0 × 5,5 125 210 6 60
0545021505500 545-IS 150 1,2 × 6,5 150 245 6 78
0545021755500 545-IS 175 1,6 × 8,0 175 280 6 127
0545022005500 545-IS 200 1,6 × 10,0 200 315 6 150
0545022505500 545-IS 250 2,0 × 12,0 250 375 6 220
0545023005500 545-IS 300 2,0 × 14,0 300 425 6 285

649-IS...
ELECTRICIANS SCREWDRIVER
³ for plain slotted screws
³ matt chrome plated forged blade
³ through hardened
06 ³ blade edge gunmetal finished
®
³ nonslip QUATROLIT -2C-handle
³ with suspension hole
³ up to IS 75: blade made from ELORA-Special steel 73MoV5 / 1.2381
³ all other made from ELORA-Chrome-Vanadium 59CrV4 / 1.2242
³ according to DIN ISO 2380-2, blade tip according to DIN ISO 2380-1
  Pieces Weight/g
Code Number Edge mm  
0649020605500 649-IS 60 0,4 × 2,5 60 145 6 30
0649020755500 649-IS 75 0,5 × 3,0 75 160 6 32
0649021005500 649-IS 100 0,6 × 3,5 100 185 6 36
0649021085500 649-IS 108 0,8 × 4,0 100 185 6 40
0649021255500 649-IS 125 1,0 × 5,5 125 210 6 60
0649021505500 649-IS 150 1,0 × 5,5 150 235 6 66
0649021755500 649-IS 175 1,0 × 5,5 175 260 6 70
0649022005500 649-IS 200 1,0 × 5,5 200 295 6 84
0649023005500 649-IS 4,5x300 0,8 × 4,5 300 385 6 70
0649023005501 649-IS 6,0x300 1,0 × 6,0 300 395 6 114
559/1-PH...
SCREWDRIVER
³ for cross slotted screws
³ matt chrome plated hexagon blade with forged hexagon section
³ through hardened
³ tip gunmetal finished
®
³ nonslip QUATROLIT -2C-handle
³ with suspension hole
³ blade made from ELORA-Special steel 73MoV5 / 1.2381
³ according to DIN ISO 8764, tip according to DIN ISO 8764-1 PH
  Pieces Weight/g
Code Number Hexagon mm  
0559020015600 559/1-PH 1 80 165 8 6 72
0559020025600 559/1-PH 2 100 195 10 6 106
0559020035600 559/1-PH 3 150 255 13 6 175
0559020045600 559/1-PH 4 200 325 16 6 295

266
