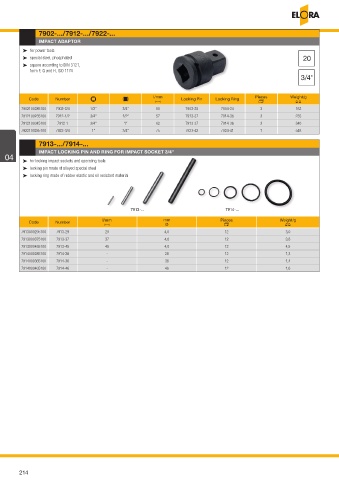

Page 214 - ELORA-Tool_Catalogue_E95

7902-.../7912-.../7922-...
IMPACT ADAPTOR

³ for power tools
³ special steel, phosphated 20
³ square according to DIN 3121,
form F, G and H, ISO 1174
3/4"

Code Number l/mm Locking Pin Locking Ring Pieces Weight/g
T U V
7902100285100 7902-3/4 1/2“ 3/4“ 50 7903-25 7904-24 3 162
7912100235100 7912-1/2 3/4“ 1/2“ 57 7913-37 7914-36 3 235
7912100345100 7912-1 3/4“ 1“ 62 7913-37 7914-36 3 340
7922100285100 7922-3/4 1“ 3/4“ 75 7923-42 7924-41 1 548

7913-.../7914-...
IMPACT LOCKING PIN AND RING FOR IMPACT SOCKET 3/4"
04 ³ for locking impact sockets and operating tools
04
³ locking pin made of alloyed special steel
³ locking ring made of rubber elastic and oil resistant material

7913-... 7914-...

Code Number l/mm mm Pieces Weight/g
T Ø U V
7913000295100 7913-29 29 4,0 12 3,0
7913000375100 7913-37 37 4,0 12 3,8
7913000455100 7913-45 45 4,0 12 4,5
7914000285100 7914-28 - 28 12 1,2
7914000365100 7914-36 - 36 12 1,4
7914000465100 7914-46 - 46 12 1,6

214
