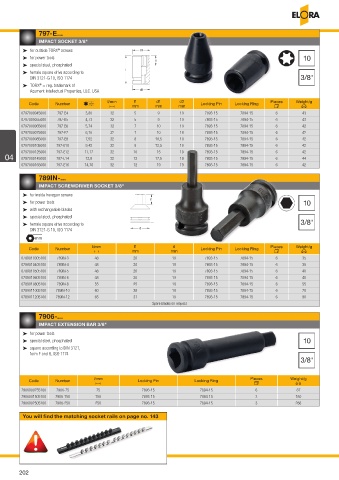

Page 202 - ELORA-Tool_Catalogue_E95

797-E...
IMPACT SOCKET 3/8"
®
³ for outside TORX screws
³ for power tools 10
³ special steel, phosphated
³ female square drive according to
DIN 3121-G 10, ISO 1174 3/8"
®
³ TORX = reg. trademark of
Acument Intellectual Properties, LLC. USA
Code Number l/mm l1 d1 d2 Locking Pin Locking Ring Pieces Weight/g
T mm mm mm U V
0797000045000 797-E4 3,86 32 5 9 19 7893-15 7894-15 6 43
0797000055000 797-E5 4,73 32 5 9 19 7893-15 7894-15 6 43
0797000065000 797-E6 5,74 32 7 10 19 7893-15 7894-15 6 42
0797000075000 797-E7 6,16 32 7 10 19 7893-15 7894-15 6 42
0797000085000 797-E8 7,52 32 8 10,5 19 7893-15 7894-15 6 42
0797000105000 797-E10 9,42 32 9 12,5 19 7893-15 7894-15 6 42
0797000125000 797-E12 11,17 32 10 15 19 7893-15 7894-15 6 42
04 0797000145000 797-E14 12,9 32 12 17,5 19 7893-15 7894-15 6 44
04
0797000165000 797-E16 14,76 32 12 19 19 7893-15 7894-15 6 42
789IN-...
IMPACT SCREWDRIVER SOCKET 3/8"
³ for inside hexagon screws
³ for power tools 10
³ with exchangeable blades
³ special steel, phosphated
³ female square drive according to 3/8"
DIN 3121-G 10, ISO 1174

Code Number l/mm l1 d Locking Pin Locking Ring Pieces Weight/g
T mm mm U V
0789010305100 789IN-3 48 20 19 7893-15 7894-15 6 35
0789010405100 789IN-4 48 20 19 7893-15 7894-15 6 35
0789010505100 789IN-5 48 20 19 7893-15 7894-15 6 40
0789010605100 789IN-6 48 20 19 7893-15 7894-15 6 40
0789010805100 789IN-8 55 25 19 7893-15 7894-15 6 55
0789011005100 789IN-10 60 28 19 7893-15 7894-15 6 70
0789011205100 789IN-12 65 31 19 7893-15 7894-15 6 90
Spare blades on request
7906-...
IMPACT EXTENSION BAR 3/8"

³ for power tools
³ special steel, phosphated 10
³ square according to DIN 3121,
form F and G, ISO 1174
3/8"

Code Number l/mm Locking Pin Locking Ring Pieces Weight/g
T U V
7906000755100 7906-75 75 7893-15 7894-15 6 87
7906001505100 7906-150 150 7893-15 7894-15 3 180
7906002505100 7906-250 250 7893-15 7894-15 3 286
You will find the matching socket rails on page no. 143

202
