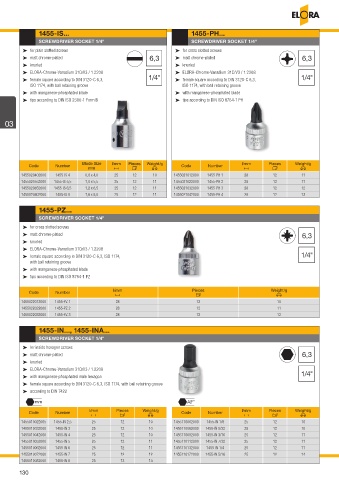

Page 130 - ELORA-Tool_Catalogue_E95

1455-IS... 1455-PH...
SCREWDRIVER SOCKET 1/4" SCREWDRIVER SOCKET 1/4"

³ for plain slotted screws ³ for cross slotted screws
³ matt chrome-plated 6,3 ³ matt chrome-plated 6,3
³ knurled ³ knurled
³ ELORA-Chrome-Vanadium 31CrV3 / 1.2208 ³ ELORA-Chrome-Vanadium 31CrV3 / 1.2208
³ female square according to DIN 3120-C 6,3, 1/4" ³ female square according to DIN 3120-C 6,3, 1/4"
ISO 1174, with ball retaining groove ISO 1174, with ball retaining groove
³ with manganese-phosphated blade ³ with manganese-phosphated blade
³ tips according to DIN ISO 2380-1 Form B ³ tips according to DIN ISO 8764-1 PH

03

Blade Size l/mm Pieces Weight/g l/mm Pieces Weight/g
Code Number   Code Number  
mm T T
1455020402000 1455-IS 4 0,8 x 4,0 25 12 10 1455021012000 1455-PH 1 28 12 11
1455020552000 1455-IS 5,5 1,0 x 5,5 25 12 11 1455021022000 1455-PH 2 28 12 11
1455020652000 1455-IS 6,5 1,2 x 6,5 25 12 11 1455021032000 1455-PH 3 28 12 12
1455020802000 1455-IS 8 1,6 x 8,0 25 12 11 1455021042000 1455-PH 4 28 12 13

1455-PZ...
SCREWDRIVER SOCKET 1/4"
³ for cross slotted screws
³ matt chrome-plated 6,3
³ knurled
³ ELORA-Chrome-Vanadium 31CrV3 / 1.2208
³ female square according to DIN 3120-C 6,3, ISO 1174, 1/4"
with ball retaining groove
³ with manganese-phosphated blade
³ tips according to DIN ISO 8764-1 PZ

l/mm Pieces Weight/g
Code Number  
T
1455022012000 1455-PZ 1 28 12 10
1455022022000 1455-PZ 2 28 12 11
1455022032000 1455-PZ 3 28 12 12

1455-IN..., 1455-INA...
SCREWDRIVER SOCKET 1/4"
³ for inside hexagon screws
³ matt chrome-plated 6,3
³ knurled
³ ELORA-Chrome-Vanadium 31CrV3 / 1.2208
³ with manganese-phosphated male hexagon 1/4"
³ female square according to DIN 3120-C 6,3, ISO 1174, with ball retaining groove
³ according to DIN 7422

l/mm Pieces Weight/g l/mm Pieces Weight/g
Code Number   Code Number  
T T
1455010022005 1455-IN 2,5 25 12 10 1455110062000 1455-IN 1/8 25 12 10
1455010032000 1455-IN 3 25 12 10 1455110082000 1455-IN 5/32 25 12 10
1455010042000 1455-IN 4 25 12 10 1455110092000 1455-IN 3/16 25 12 11
1455010052000 1455-IN 5 25 12 11 1455110112000 1455-IN 7/32 25 12 11
1455010062000 1455-IN 6 25 12 11 1455110132000 1455-IN 1/4 25 12 11
1455010072000 1455-IN 7 25 12 12 1455110172000 1455-IN 5/16 25 12 14
1455010082000 1455-IN 8 25 12 14
