This ELORA product family contains a wide range
of sockets designed for all sectors of industry and
the trades. Input and output drives for many different
types of sockets. All the standard sizes you would
expect. Separately or in sets. In robust, protective
metal cases or ready for use in exactly cut, easy-
to-use ELORA OMS modules.
03

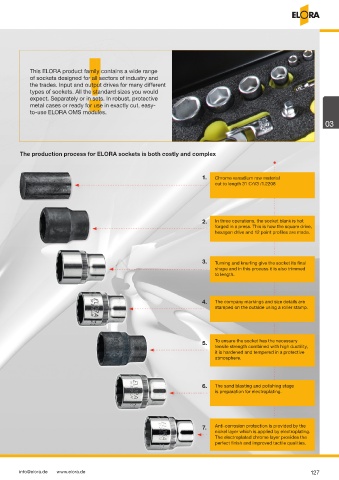

The production process for ELORA sockets is both costly and complex

1. Chrome vanadium raw material
cut to length 31 CrV3 /1.2208

2. In three operations, the socket blank is hot
forged in a press. This is how the square drive,
hexagon drive and 12 point profiles are made.

3. Turning and knurling give the socket its final
shape and in this process it is also trimmed
to length.

4. The company markings and size details are
stamped on the outside using a roller stamp.

5. To ensure the socket has the necessary
tensile strength combined with high ductility,
it is hardened and tempered in a protective
atmosphere.

6. The sand blasting and polishing stage
is preparation for electroplating.

7. Anti-corrosion protection is provided by the
nickel layer which is applied by electroplating.
The electroplated chrome layer provides the
perfect finish and improved tactile qualities.
