1 ”
943 PC1 /2
1 ”

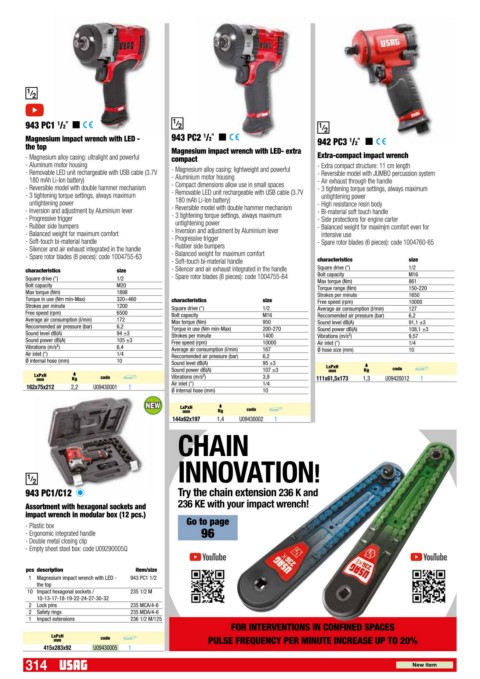

Magnesium impact wrench with LED - 943 PC2 /2 1 ”
the top Magnesium impact wrench with LED- extra 942 PC3 /2
- Magnesium alloy casing: ultralight and powerful compact Extra-compact impact wrench
- Aluminum motor housing - Extra compact structure: 11 cm length
- Removable LED unit rechargeable with USB cable (3.7V - Magnesium alloy casing: lightweight and powerful - Reversible model with JUMBO percussion system
180 mAh Li-Ion battery) - Aluminium motor housing - Air exhaust through the handle
- Reversible model with double hammer mechanism - Compact dimensions allow use in small spaces - 3 tightening torque settings, always maximum
- 3 tightening torque settings, always maximum - Removable LED unit rechargeable with USB cable (3.7V untightening power
untightening power 180 mAh Li-Ion battery) - High resistance resin body
- Inversion and adjustment by Aluminium lever - Reversible model with double hammer mechanism - Bi-material soft touch handle
- Progressive trigger - 3 tightening torque settings, always maximum - Side protections for engine carter
- Rubber side bumpers untightening power - Balanced weight for maximjm comfort even for
- Balanced weight for maximum comfort - Inversion and adjustment by Aluminium lever intensive use
- Soft-touch bi-material handle - Progressive trigger - Spare rotor blades (6 pieces): code 1004760-65
- Silencer and air exhaust integrated in the handle - Rubber side bumpers
- Spare rotor blades (8 pieces): code 1004755-63 - Balanced weight for maximum comfort
- Soft-touch bi-material handle characteristics size
characteristics size - Silencer and air exhaust integrated in the handle Square drive (") 1/2
Bolt capacity
M16
Square drive (") 1/2 - Spare rotor blades (8 pieces): code 1004755-64 Max torque (Nm) 861
Bolt capacity M20 Torque range (Nm) 150-220
Max torque (Nm) 1898 Strokes per minute 1650
Torque in use (Nm min-Max) 320÷460 characteristics size Free speed (rpm) 10000
Strokes per minute 1200 Square drive (") 1/2 Average air consumption (l/min) 127
Free speed (rpm) 6500 Bolt capacity M16 Reccomended air pressure (bar) 6,2
Average air consumption (l/min) 172 Max torque (Nm) 950 Sound level dB(A) 91,1 ±3
Reccomended air pressure (bar) 6,2 Torque in use (Nm min-Max) 200-270 Sound power dB(A) 108,1 ±3
Sound level dB(A) 94 ±3 Strokes per minute 1400 Vibrations (m/s²) 9,57
Sound power dB(A) 105 ±3 Free speed (rpm) 10000 Air inlet (") 1/4
Vibrations (m/s²) 6,4 Average air consumption (l/min) 167 Ø hose size (mm) 10
Air inlet (") 1/4 Reccomended air pressure (bar) 6,2
Ø internal hose (mm) 10 Sound level dB(A) 95 ±3
a
Cod.
Sound power dB(A) 107 ±3 LxPxH Kg code Q.tà x conf. €
mm
LxPxH code Q.tà x conf. € Vibrations (m/s²) 3,9
Cod.
a
mm Kg 111x61,5x173 1,3 U09420012 1
162x75x212 2,2 U09430001 1 Air inlet (") 1/4
Ø internal hose (mm) 10

LxPxH Cod. Q.tà x conf. €
a
code
mm Kg
144x62x197 1,4 U09430002 1
CHAIN
Colore da utilizzare per codici novità
CMYK: 45-0-100-0
INNOVATION!
943 PC1/C12 Try the chain extension 236 K and
Assortment with hexagonal sockets and 236 KE with your impact wrench!
impact wrench in modular box (12 pcs.)
- Plastic box Go to page
- Ergonomic integrated handle 96
- Double metal closing clip
- Empty sheet steel box: code U09290005Q

pcs description item/size
1 Magnesium impact wrench with LED - 943 PC1 1/2
the top
10 Impact hexagonal sockets / 235 1/2 M
10-13-17-18-19-22-24-27-30-32
2 Lock pins 235 MCA/4-6
2 Safety rings 235 MDA/4-6
1 Impact extensions 236 1/2 M/125
FOR INTERVENTIONS IN CONFINED SPACES
LxPxH Cod. Q.tà x conf. €
a
mm code PULSE FREQUENCY PER MINUTE INCREASE UP TO 20%
415x283x92 U09430005 1
314 New item
