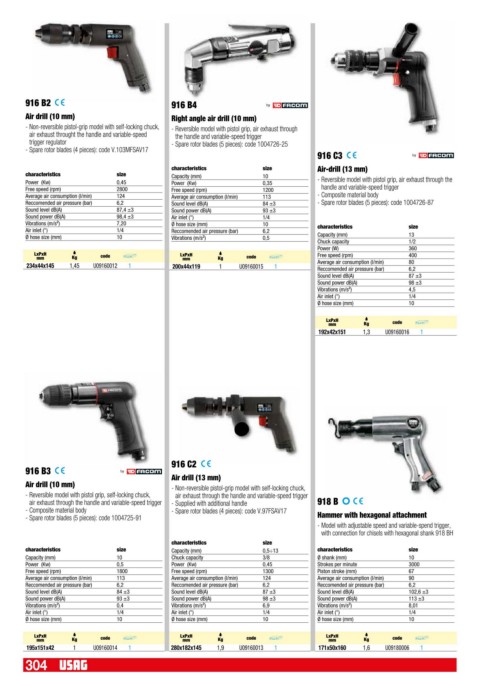

916 B2 916 B4
Air drill (10 mm) Right angle air drill (10 mm)
- Non-reversible pistol-grip model with self-locking chuck, - Reversible model with pistol grip, air exhaust through
air exhaust throught the handle and variable-speed the handle and variable-speed trigger
trigger regulator - Spare rotor blades (5 pieces): code 1004726-25
- Spare rotor blades (4 pieces): code V.103MFSAV17
916 C3

characteristics size Air-drill (13 mm)
characteristics size Capacity (mm) 10
Power (Kw) 0,45 Power (Kw) 0,35 - Reversible model with pistol grip, air exhaust through the
Free speed (rpm) 2800 Free speed (rpm) 1200 handle and variable-speed trigger
Average air consumption (l/min) 124 Average air consumption (l/min) 113 - Composite material body
Reccomended air pressure (bar) 6,2 Sound level dB(A) 84 ±3 - Spare rotor blades (5 pieces): code 1004726-87
Sound level dB(A) 87,4 ±3 Sound power dB(A) 93 ±3
Sound power dB(A) 98,4 ±3 Air inlet (") 1/4
Vibrations (m/s²) 7,20 Ø hose size (mm) 10 characteristics size
Air inlet (") 1/4 Reccomended air pressure (bar) 6,2
Ø hose size (mm) 10 Vibrations (m/s²) 0,5 Capacity (mm) 13
Chuck capacity 1/2
Power (W) 360
LxPxH Cod. Q.tà x conf. € LxPxH Free speed (rpm) 400
a
a
code
mm Kg code mm Kg Cod. Q.tà x conf. €
234x44x145 1,45 U09160012 1 200x44x119 1 U09160015 1 Average air consumption (l/min) 80
Reccomended air pressure (bar)
6,2
Sound level dB(A) 87 ±3
Sound power dB(A) 98 ±3
Vibrations (m/s²) 4,5
Air inlet (") 1/4
Ø hose size (mm) 10
LxPxH a
Cod.
mm Kg code Q.tà x conf. €
192x42x151 1,3 U09160016 1

916 C2
916 B3
Air drill (13 mm)
Air drill (10 mm) - Non-reversible pistol-grip model with self-locking chuck,
- Reversible model with pistol grip, self-locking chuck, air exhaust through the handle and variable-speed trigger
air exhaust through the handle and variable-speed trigger - Supplied with additional handle 918 B
- Composite material body - Spare rotor blades (4 pieces): code V.97FSAV17
- Spare rotor blades (5 pieces): code 1004725-91 Hammer with hexagonal attachment
- Model with adjustable speed and variable-spend trigger,
with connection for chisels with hexagonal shank 918 BH
characteristics size
characteristics size Capacity (mm) 0,5÷13 characteristics size
Capacity (mm) 10 Chuck capacity 3/8 Ø shank (mm) 10
Power (Kw) 0,5 Power (Kw) 0,45 Strokes per minute 3000
Free speed (rpm) 1800 Free speed (rpm) 1300 Piston stroke (mm) 67
Average air consumption (l/min) 113 Average air consumption (l/min) 124 Average air consumption (l/min) 90
Reccomended air pressure (bar) 6,2 Reccomended air pressure (bar) 6,2 Reccomended air pressure (bar) 6,2
Sound level dB(A) 84 ±3 Sound level dB(A) 87 ±3 Sound level dB(A) 102,6 ±3
Sound power dB(A) 93 ±3 Sound power dB(A) 98 ±3 Sound power dB(A) 113 ±3
Vibrations (m/s²) 0,4 Vibrations (m/s²) 6,9 Vibrations (m/s²) 8,01
Air inlet (") 1/4 Air inlet (") 1/4 Air inlet (") 1/4
Ø hose size (mm) 10 Ø hose size (mm) 10 Ø hose size (mm) 10
LxPxH Cod. Q.tà x conf. € LxPxH Cod. Q.tà x conf. € LxPxH Cod. Q.tà x conf. €
a
a
a
mm Kg code mm Kg code mm Kg code
195x151x42 1 U09160014 1 280x182x145 1,9 U09160013 1 171x50x160 1,6 U09180006 1
304
