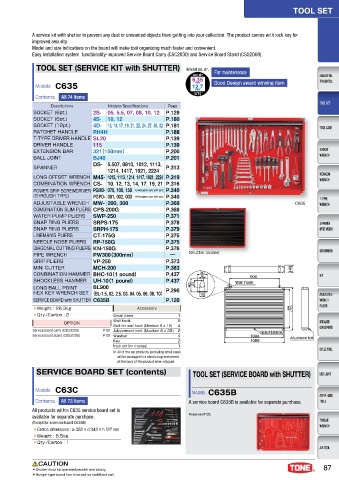

Page 89 - 日本前田TONE

A service kit with shutter to prevent any dust or unwanted objects from getting into your collection. The product comes with lock key for
improved security.
Model and size indications on the board will make tool organizing much faster and convenient.
Easy installation system functionality-improved Service Board Carry (CSC2000) and Service Board Stand (CSS2000).

TOOL SET (SERVICE KIT with SHUTTER) .JYFE TR ES
For maintenance
6.35
Models C635 12.7 Good Design award winning item
mm
mm
1/4 1/2
Contents All 74 Items
Descriptions Models/Specifications Page
SOCKET (6pt.) 2S- 05, 5.5, 07, 08, 10, 12 P.129
SOCKET (6pt.) 4S- 10, 12 P.180
SOCKET (12pt.) 4D- 13, 14, 17, 19, 21, 22, 24, 27, 30, 32 P.181
RATCHET HANDLE RH4H P.188
T-TYPE DRIVER HANDLE SL20 P.139
DRIVER HANDLE 115 P.139
EXTENSION BAR 321（150mm） P.200
BALL JOINT BJ40 P.201
DS- 5.507, 0810, 1012, 1113,
SPANNER 1214, 1417, 1921, 2224 P.313
LONG OFFSET WRENCH M45- 1012, 1113, 1214, 1417, 1921, 2224 P.319
COMBINATION WRENCH CS- 10, 12, 13, 14, 17, 19, 21 P.316
POWER GRIP SCREWDRIVER PGMD- 075, 100, 150 ⊖Hexagon axis soft grip P.340
(THROUGH TYPE) PGPD- 001, 002, 003 ⊕Hexagon axis soft grip P.340
ADJUSTABLE WRENCH MW- 200, 300 P.368 C635
COMBINATION SLIM PLIERS CPS-200G P.368
WATER PUMP PLIERS SWP-250 P.371
SNAP RING PLIERS SRPS-175 P.378
SNAP RING PLIERS SRPH-175 P.379
LINEMAN'S PLIERS CT-175G P.375
NEEDLE NOSE PLIERS RP-150G P.375
DIAGONAL CUTTING PLIERS KN-150G P.376
PIPE WRENCH PW300（300mm） ― Shutter closed
GRIP PLIERS VP-250 P.373
MINI CUTTER MCH-200 P.383
CONBINATION HAMMER BHC-10（1 pound） P.437
SHOCKLESS HAMMER UH-10（1 pound） P.437 8BMM IPPL
LONG BALL POINT BL900
HEX KEY WRENCH SET （BL-1.5, 02, 2.5, 03, 04, 05, 06, 08, 10） P.290
SERVICE BOARD with SHUTTER C635B P.120
● Weight : 26.3kg Accessory
● Qty./Carton : 2 Small case 1
Wall hook 2
OPTION
Bolt for wall hook (Medium 8 x 15) 4
Service board carry (CSC2000) P121 Adjustment bolt (Medium 8 x 35) 2 5VCVMBS QJO UVNCMFS MPDL
Service board stand (CSS2000) P121 Washer 4 "EKVTUNFOU CPMU
Key 2
Instruction manual 1
※ All of the set products (excluding small case)
will be packaged in a plastic bag and stored
at the back of the product when shipped.
SERVICE BOARD SET (contents) TOOL SET (SERVICE BOARD with SHUTTER)

Models C63C Models C635B

Contents All 73 Items A service board C635B is available for separate purchase.
All products within C635 service board set is
available for separate purchase. Please see P120.
(Except for a service board C635B)
● Carton dimensions : w 352 × d 342 × h 127 mm
● Weight : 8.5kg
● Qty./Carton : 1

CAUTION
● Shutter must be operated parallel and slowly. 87
● Hunger type board has to be put on stabilized wall.
